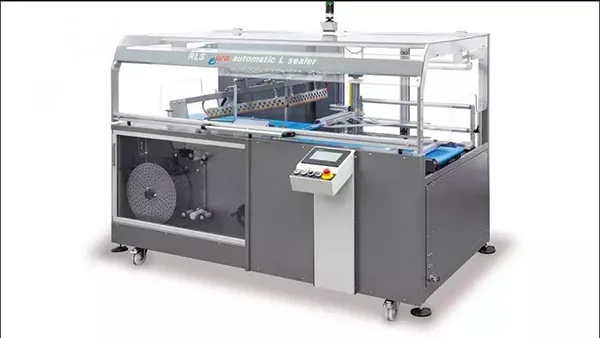

RLS ePro Automatic L Sealer

RLS e-Pro Auto Series

Servo Driven Electrical System

Advantages:

• Economical solution to medium capacity fully automatic packaging needs
• Possibility to integrate directly and easily into production lines
• Body design that is easily accessible in adjustments and maintenance

Features:

• Servo motorized jaw control system
• Automatic height recognition with photocell detection and encoder control
• Color, touch and easy-to-use control panel
• Tension control and automatic film feeding
• Tension controlled and automatic shrink wrap
• Weld line alignment feature with central welding adjustment system
• Packet feeding interval frequency control with PLC and photocell
• Ability to read product counter, total and instant capacity
• Electronic jaw opening control
• Servo system controlled jaw pressure feature
• CE compliant waste wrapping system with safety cover
• Coil unit with slide, slide and safety cover
• Use with wheels and fixed feet
• Packaging material tension difference warning
• Professional type air discharge hole drilling system

Welding System:

• Teflon coated L-type cutting blades and “Hot-jaw” system
• Welding temperature values with PID control and input from the screen
• Welding blades suitable for the structures of different packaging materials
• Product detection and protection under the chin with photocell

Flexibility:

• Easy adjustment for different product sizes and speed changes
• Touch screen compatible with different local languages
• Product settings that can be memorized and recalled
• Easy loading and unloading of waste with the advantage of design in waste change
• Easy loading and serial flow automation with independent film reel cabinet
• Separate front and rear wastage settings according to package size

Optional:

• Easy passage of small products in the chin area with automatic “join-band”
• Printed film control system
• Ability to use a single layer of film by adding a film folding unit
• Possibility to control external bands from the operator panel
• Econoic model option with pneumatic jaw

TECHNICIAL SPECIFICATIONS

• Maximum Packaging Dimensions:E:350 x W:450 x H:100 mm
• Jaw Aperture:160mm
• Band Speed:30 m/min (adjustable)
• Jaw Length:580 x 440mm
• Working Height:860mm
• Conveyor Belt Width:400mm
• Minimum Package Width:50mm
• Maximum Film Coil Width:650mm
• Film Thickness:10 to 40 microns (0.4 to 1.6 mils)
• Available Movie Types:POF, PE, OPP, CPP, PP
• Maximum Roll Diameter:300mm Standard (variable)
• Colour:Gray Mix + RAL7010 + RAL7015
• Compressed Air Requirement:no
• Installed Power:50-60 Hz, 400V, 6 Amps, 3 Phase
• Consumption (Maximum/Average):4 kW / 3 kW
• Dimensions (LxWxH):1240 x 2080 x 1890mm
• Pallet Dimensions (LxWxH):1400 x 2270 x 1680mm
• Weight (Net/Tracked):748kg/828kg
