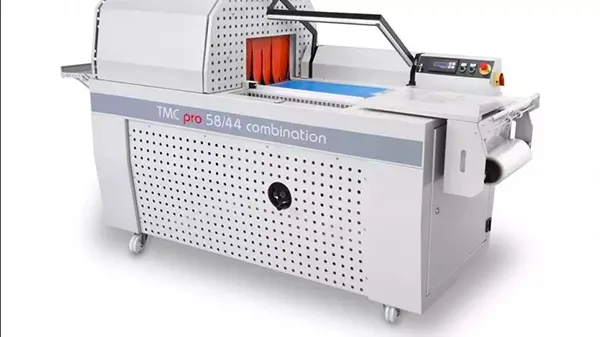

TMC Pro Semi Automatic L Sealer Machine

TMC PRO Tunnel Semi-Automatic

Advantages:

• Thanks to its compact body design, it saves the settlement area.
• Provides easy and safe use in accordance with ISG conditions
• Thanks to the Intelligent Cutting System®, only the required amount of heat is delivered to the flat cutting wire.
• Target wire temperature is fixed thanks to the Intelligent Cutting System®
• Thanks to the constant wire temperature, the life of the wire and the wire bed is extended, the welding quality increases

Features:

• Motor driven cutting jaw feature is available (does not require compressed air)
• In auto mode, self-cut cycles in defined time
• Free position cut is triggered by button
• Operator safety is ensured by sensor control that instantly stops the loop
• Speed control facility is provided for tunnel fan
• Ability to adjust heat treatment time with speed control in tunnel conveyor
• Heat and energy management with intelligent digital heat control system (PID)
• Airflow control with side fins
• Automatic cooling up to 70 degrees inside the tunnel in shutdown mode
• “emergency” temperature control safety in the tunnel independent of standard temperature control
• It can be easily transported within the facility thanks to its wheeled feet.

Welding System:

• The jaw is closed by the motor drive and cutting occurs between the tire and the wire.
• The cutting wire is positioned on the lower jaw
• The cutting wire is embedded in the flexible fiber bed, which is not affected by temperature differences
• Silicone rubber covered with Teflon tape improves cutting quality and silicone life

Flexibility:

• Complete line height can be adjusted by arm according to different product heights
• Conveyor working times can be adjusted according to different product sizes.
• According to different film thicknesses, the cutting wire strength can be adjusted gradually
• All settings (temperature, time, speed) are easily made on the digital display.
• Different language options can be selected via the digital display

Optional:

• Automatic waste wrapping system can be optionally added
• Stainless chassis alternatives can be produced suitable for wet or humid operation areas.
• Tunnel conveyor alternatives: Wire mesh, Teflon mesh or Plastic Modular
• On-site (at the address of the buyer) installation and training service can be provided upon request.

Quality:

• There is an ISO 9001 quality certificate approved for compliance with the norms
• CE marking and mechanical and electrical safety in accordance with the latest CE directives
• Mechanical and electrical equipment are brands whose reliability is recognized worldwide.
• Our maki are under warranty for 1 year against manufacturing defects.
• Wearable parts due to use are not covered by the warranty.
• 1 set of wearable parts (wire, teflon, silicone) is supplied as a spare
• Spare parts stock availability guarantee for 5 years
• Installation, testing and training service is provided free of charge at Maripak Fabrika

TECHNICIAL SPECIFICATIONS

• Max. Package Dimensions (LxWxH):300 x 450 x 150mm
• Maximum Capacity:10 - 15 packs/minute
• Maximum Product Height:150mm
• Working Height:860mm
• Compressed Air Requirement:no
• Applied Fil ypes:POF: 7-37 micron PVC: 15 - 25 micron
• Dimensions (LxWxH):950 x 2670 x 1220mm
• Installed Power:50-60Hz, 400V, 13 Amps, 3 Phase
• Consumption (Maximum / Average):10 kW / 6 kW
