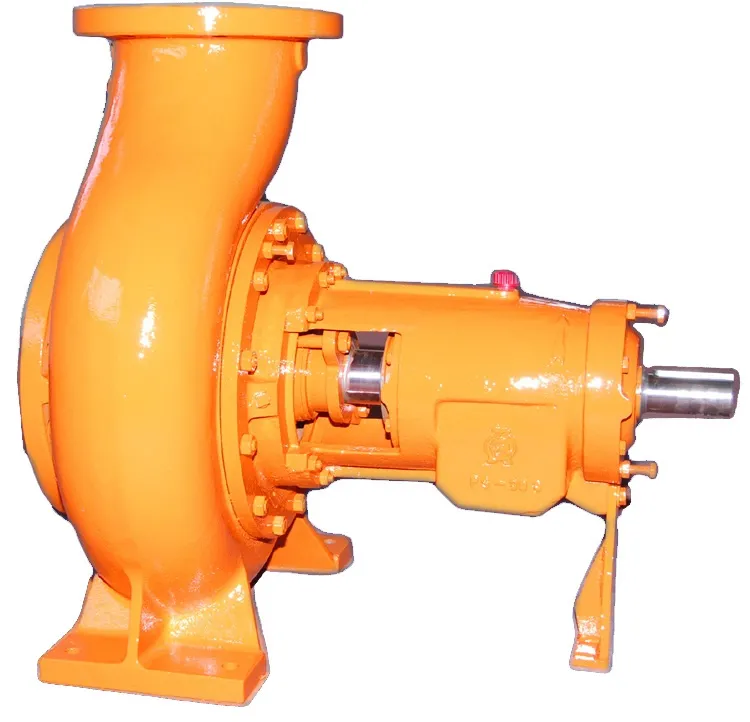

Pulp & Paper Stock Pump

Pulp & Paper: DIN 25256



Application usage: KPPS pumps are used in pulp & paper industry, food Industry, Absorption plants in environmental engineering & etc.



Handles pulp & paper stocks up to 5% consistency heavily contaminated liquids, raw sewages, chlorinated water.



Design Specification: Horizontal back pull out design pumps. Open & semi open impeller construction with one cylinder roller bearing on pump end, one double row angular contact ball bearing on drive end, designed in accordance.



Operating Data:

Capacity: up to 2500m3/hr

Head: up to 80mtrs (252feet)

Temperature: up to 140*c (284F)

Casing Pressure: up to 22kg/cm2

Pump Size: DN 80mm to DN 400mm

Rotational Speed: max 3600rpm



Features:



  • Back Pull out Design
  • Steady Flow
  • High Efficiency
  • Sturdy Construction
  • Low NPSH
  • Noise & Maintenance Free
  • Environmental friendly
  • Shaft Deflection below 0.05mm
  • Simple external axial adjustment for impeller wear & tear
  • Pumps the pulp like water
  •

Materials used:



Graded cast iron, WCB, CF8, CF8M, SS316 & 316L, CD4MCu, Alloy20, HASTALLOY B and C.
