Company : KEERTHI PUMPS

Category : Pumps and Mixers

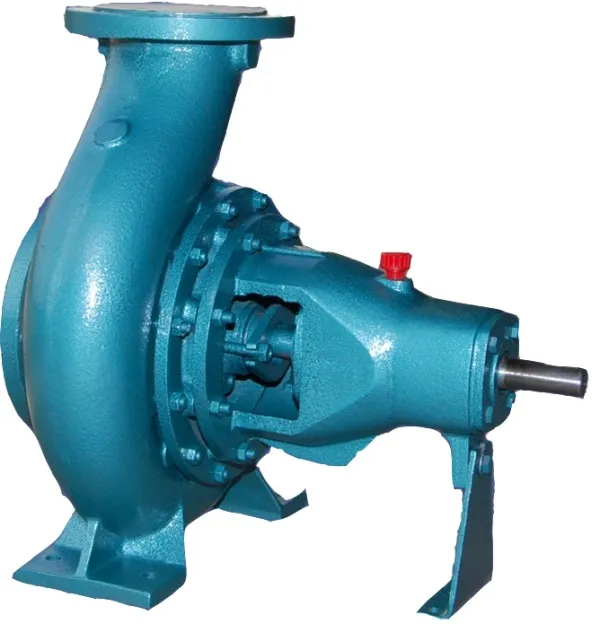

KPWP Water Pumps

Centrifugal type: DIN24255/EN733



Application Usage: KPWP types of pumps are generally used in Air-Conditioning Plants, Fire Fighting Applications, Food Processing Industry, Sugar Industry, Paper & Pulp Industry, Steel Plants, Sea Water Desalination Plants, Power Stations etc.



Handling of clear water, condensed waters up to 90*C.



Design Specification: Horizontal back pull out design pumps. Closed impeller construction with two deep groove ball bearings and designed in accordance with DIN 24255/EN 733 specification.



Operating Data:



Capacity: up to 550 m3/hr

Head: up to 100mtrs(328 feet)

Temperature: 90*C (194 F)

Casing Pressure: up to 16kg/cm2

Pump Size: DN 32mm to DN 150mm

Rotational Speed: max 2900 rpm



Features:



  • Back Pull out Design
  • Steady Flow
  • High Efficiency
  • Sturdy Construction
  • Low NPSH
  • Noise & Maintenance Free
  • Environmental friendly
  • Shaft Deflection below 0.05mm
  • Bearing life > 17000 operating hrs
  •

Materials used:



Graded Cast Iron & Bronze
