Company : KEERTHI PUMPS

Category : Pumps and Mixers

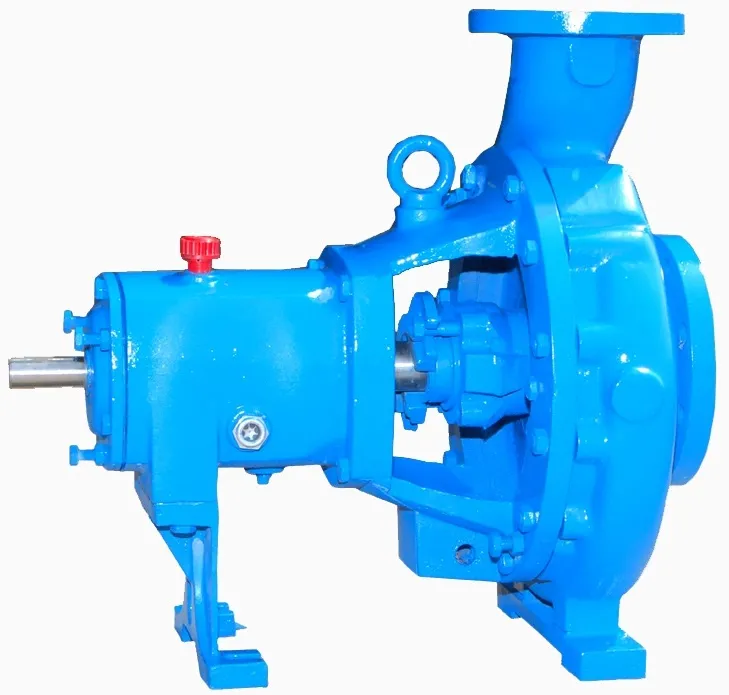

ANSI Chemical Process Pump

Chemical Process Type: ANSI B 73.1



Application Usage: KPACH type pumps are used in chemical & petrochemical industry, food industry, dyeing industry, sugar industry, paper & pulp industry etc.



Handles all types of liquids, acids, alkalis, dyes hydrocarbons, corrosive slurries (solids up to 15mm), green, black liquor, pulp (consistency up to 2%) & Etc.



Design Specification: Horizontal back pull out design pumps, Open & semi open impeller construction with one cylinder roller bearing on pump end, one double row angular contact ball bearing on drive end, designed in accordance with ANSI B 73.1



Operating Data:



Capacity: up to 600m3/hr

Head: up to 180mtrs (590 feet)

Temperature: up to 200*c (392F)

Casing Pressure:  up to 24kg/cm2

Pump size: DN 25mm to DN 200mm

Rotational Speed: up to 3600rpm



Features:



  • Back Pull out Design
  • Steady Flow
  • High Efficiency
  • Sturdy Construction
  • Low NPSH
  • Noise & Maintenance Free
  • Environmental friendly
  • Shaft Deflection below 0.05mm
  • Simple external axial adjustment for impeller wear & tear
  • Bearing life > 17000 operating hrs
  •

Material used:



Graded cast iron, WCB, CF8, CF8M, SS316 & 316L, CD4MCu, Alloy20, HASTALLOY B and C.
