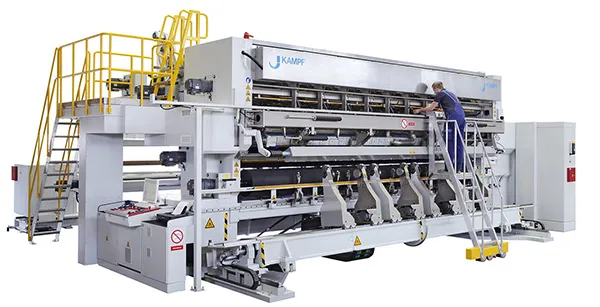

PrimeSlitter BlueLine
The slitting machine for film producers
The new KAMPF Unislit L slitter and winder is an enhancement of the follow-up model in the successful Unislit II range of slitters for material width ranges up to 7,200 mm. This machine was developed in addition to our Universal series, especially for film manufacturers and converters who do not require the high speeds of operation of the Universal range, but who attach particular importance to perfect finished roll quality.
A suitable machine can be offered for every application due to the modular design and the various options. Consequently, by selecting the corresponding options, ideal machine concepts can be found for the manufacturers of CPP, PA, BOPET or BOPP films as well as for the manufacturers of metallised films or laminates made from paper/film or paper/paper.
Every original roll quality can be converted due to the most varied range of winding units and dancer roll systems. Whether slitting is carried out using a knife, bursting knife or shears, involving manual or automatic adjustment, our Unislit L is ideally suitable for your requirements.
This machine is fitted with single winding stations and a separate contact roll.
The principle of horizontal pivoting of the winding stations as the diameter of the finished roll grows has been adopted from the Universal 6 range. Perfect finished roll quality is guaranteed by clear separation between the winding tension and contact pressure during the entire winding process.
The electric drive developed by KAMPF reflects our many decades of experience in the construction of slitters and winders. It is convincing because it is so simple to operate, requires little maintenance and has an ideal monitoring system.
Download Unislit Series
Universal TF
Technical Data PrimeSlitter Blueline
Unislit LUniversal TF
MaterialFilms, CPP, BOPA, BOPS, BOPP, BOPET etc., Laminate, SpezialmaterialienBOPP, BOPET, BOPA, BOPLA, CPP...
Material thickness2,5 µm - 800 µm350 µm
Material widthmax. 7.200 mm7.400 mm
Parent roll diametermax. 1.600 mm1.600 mm
Finished roll diametermax. 1.200 mmmax. 1.200 mm
Finished roll weightmax. 5.000 kg2.000 / 3.000 / 5.000 kg
Slitting systemKlingenschnitt / Scherenschnitt / BerstschnittScherenschnitt
Slitting width≥ 160 mm≥ 230 mm
Wickelhülsen3“ / 6“ / 8“ / 10“3“ / 6“ / 8“ / 10“
Machine speedmax. 1.200 m/minmax. 400 m/min
