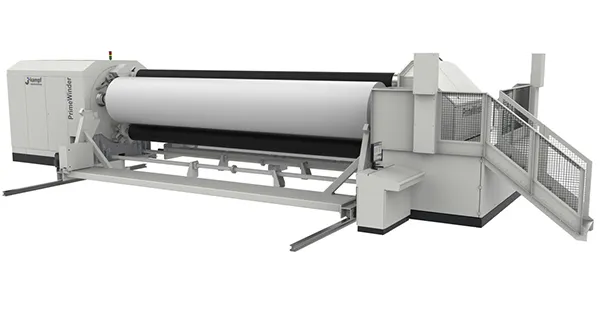

PrimeWinder BlackLine
The machine for highest quality and best efficiency
The new generation of the non-stop winder PrimeWinder CTHO is built on the established and proven design of Imperial winders running worldwide since decades. Increasing demands for speed, film width and finished roll weights made revision of the existing design necessary. The new series of PrimeWinders BlackLine with a mechanical design speed of 700 m/min, a max finished roll weight of 25 t and a film width up to 11 m is prepared for the future.
The unique features as active deflection contact roll (ADR), individual oscillation of the winding cores, auxiliary contact rolls and core clamping units were not only preserve but even further improved. New features like the new smart condition control of the contact roll, an enhanced cross cutting system and improved threading of the film reducing the waste production of the PrimeWinder CTHO additionally.
Special importance was given during the design on a high accessibility and reduced maintenance of the machine and machine parts.
The PrimeWinder CTHO sets new standards in reliability and winding quality. Of course the drive and control technology is, as on all KAMPF machines, engineered by KAMPF, which guarantees the optimum interaction of the Hard- and the Software of the winder.
Out of a huge number of options we can configure the perfect winder for all materials like BOPP, BOPET, BOPA, BOPE, CPP, etc. and applications like capacitor film, packaging film, technical films. The PrimeWinder CTHO stands for optimum quality rolls for the following slitting process at minimum waste.
Download PrimeWinder BlackLine
Technical Data PrimeWinder BlackLine
PrimeWinder CTHO
MaterialBOPP I BOPET / BOPA / BOPE / CCP
Material thicknessO,9 - 400 µm
Material width11,600 mm
Machine speedmax. 700 m/min
