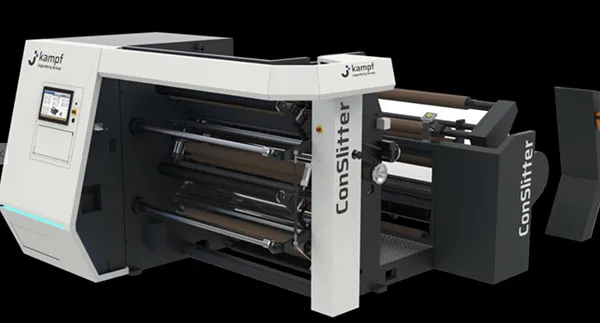

ConSlitter SilverLine
Practical and functional. Manifold applications.
Do you need a slitter rewinder that can process a variety of materials and is not too complex to operate? The ConSlitter CFRU SilverLine is the reliable and economic solution for your slitting needs.
With a speed of up to 600 m/min and two different working widths, materials up to an unwinding diameter of up to 1,000 mm can be unwound and rewound up to 610 mm. The machine is part of the proven ConSlitter series with a total of 1,000++ machines already delivered.
You can select from a flexible modular system so that the machine can be equipped exactly to your meet your requirements!
Wide range of equipment options
For perfect slitting and rewinding results:
Splicing table,
Scissor or blade cut,
Digital positioning aid for shear cut,
Friction or expansion shaft operation,
Antistatic equipment,
Eccentric contact rolls.
For high efficiency:
Laser Core positioning aid
Finished rewind roll push off device
Various rewind roll removal stands and material handling solutions
Edge trim suction
Download ConSlitter CFRU
Technical Data ConSlitter SilverLine
ConSlitter CFRU SilverLine
MaterialFilms, refined papers laminates
Material thickness10 - 500 µm
Material width1,450 / 1,750 mm
Parent roll diameter1,000 mm
Finished roll diametermax. 610 mm
Finished roll weightmax. 400 kg (feature-dependent)
Slitting systemBlade cut / scissor cut
Slitting widths≥ 25 mm
Winding cores70 mm / 3“ / 6“
Machine speedmax. 600 m/min
