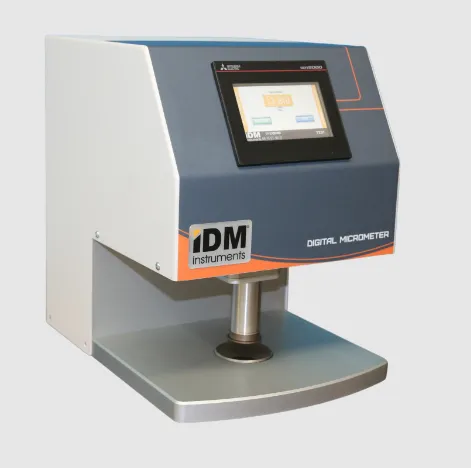

Digital Precision Thickness Micrometer

Digital Micrometer provides an accurate and repeatable thickness reading at the end of each cycle as it automatically cycles up and down at the push of a button.

Digital Micrometer contains the robust design and it is provided with two planes, parallel, circular pressure faces, between which the material is placed for measurement. The standard instrument comes with a measuring pressure of 2kPa, with the option of 20kPa, 50kpa or 100kPa instrument dependent on your application and requirements. The pressure feet are easily interchangeable to allow for quick and precise testing every time.

Applications:

• Paper
• Plastic
• Tissue
• Sheeted material

Standards:

• AS1301.426s
• BS 7387
• ISO 534: 1988
• TAPPI T 411
• ASTM D645
• ISO 3034
• FEFCO No.3
• SCAN P31

Features:

• Pressure: 2kPa
• Range: 0 -12mm
• Resolution: 0.001mm
• Accuracy: ± 0.001
• Anvil: 55mm Ø
• Pressure Foot: 35.7mm Ø
• Lowering Speed: 1 ± 0.1mm/ sec
• Parallel: Better than 5um
• RS232
• Electrical: 220/240 VAC @ 50 HZ or 110 VAC @ 60 HZ
• Dimensions: 270mm x 250mm x 300mm
• Weight: 18.5kg OPTIONS:
• 20kPa Unit: (35.7mm Ø Pressure Foot, 1 ± 0.1mm/ sec Lowering Speed)
• 50kPa Unit: (16mm Ø Pressure Foot, 0.8 ± 0.1mm/ sec Lowering Speed)
• 100kPa Unit: (16mm Ø Pressure Foot, 1 ± 0.1mm/ sec Lowering Speed)
• Other pressures are available upon request

Benefits:

• Easy to use
• Fast results
• Accurate
