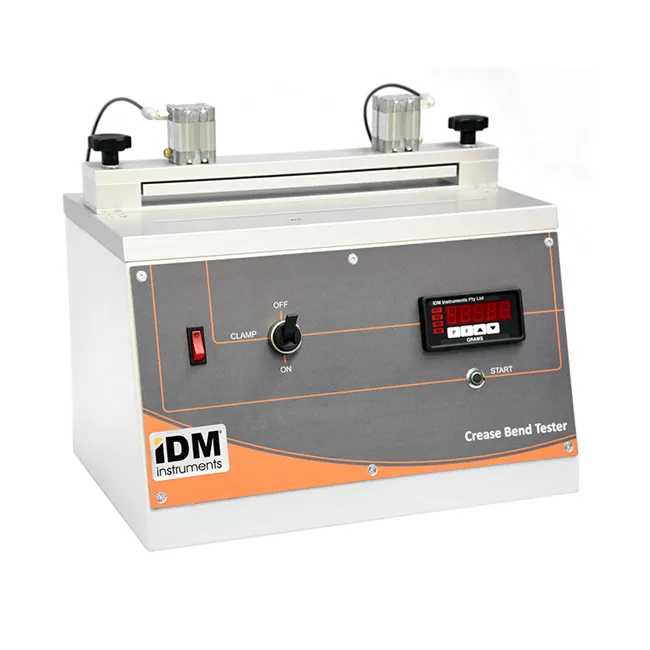

Crease Bend Tester B0012

Crease Bend Tester B0012

The Crease Bend Tester is used to measure the maximum force that is required to bend the sample cord. It is also used to monitor scoring equipment to ensure box performance, by measuring the bending resistance of creased board at the time of folding at the crease.

Corrugated converters use the Crease Bend Tester to aid in making adjustments to improve the quality; thus ensuring the end user will have boxes that run effectively on their production line.


  • Board
  • Corrugated Board


  • Range of 0 – 10,000 x 1gf
  • Maximum Sample Width: 300mm
  • Digital display
  • Accuracy 1% FS
  • Pneumatic sample clamp
  • Motorised Load Bar Adjustable folding distance
  • Peak Memory function
  • Easy to operate
  • Quick and simple testing


  • Easy to use
  • Fast results
  • Accurate


  • RS 232


  • H: 360 mm
  • W: 400 mm
  • D: 350 mm
  • Weight: 25 kg


  • Air: 80 psi Maximum
  • Electrical: 220/240 VAC @ 50 HZ or 110 VAC @ 60 HZ
