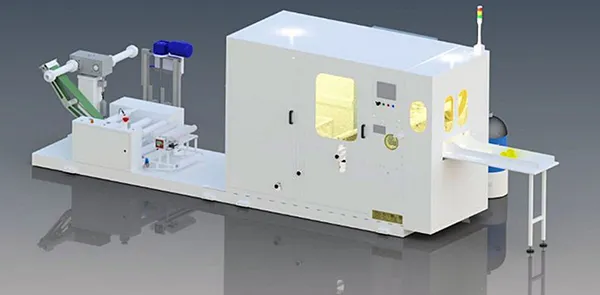

Simplex

 SIMPLEX is one of the flagships of the ICM machine portfolio. Compact design and easy adjustment help operators have full control over the machine's functionality and production. Web guide (optional), full face embossing (standard/optional), edge embossing (standard/optional), 1/4 (standard), 1/6 (optional), 1/8 (optional) folding types are available.

General features:

• Max roll diameter 1200mm-1700mm
• Axis diameter 76 mm -1200 mm
• Folding width 2400 - 400 mm
• Machine speed:  450 meters/min
• mechanical folding
• Machine type: Electromechanical
• Installed power: 12 kVA
• Air pressure: 6 BAR
• Compressed air requirement: 200 N1/min
• Noise: less than 80 dbA
• ALLEN BRADLEY automation systems
• Lubrication: Central, automatic for key points
• Safety Protection: Sensors with mounted safety microswitches
• Automatic bobbin lifting system
