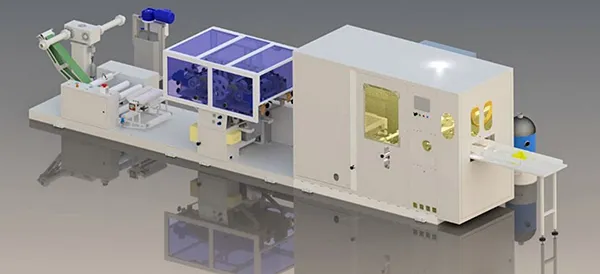

Sense

SENSE is one of the first color machines made by ICM machine. Compact design and easy adjustment help operators have full control over the machine's functionality and production. With 6 different color options, it offers a wide color choice to the customer. Web guide (optional), full face embossing (standard/optional), edge embossing (standard/optional), 1/4 (standard), 1/6 (optional), 1/8 (optional) folding types are available.

General features:

• Max roll diameter 1200mm-1700mm
• Axis diameter 76 mm -1200 mm
• Folding width 2400 - 400 mm
• Machine speed: 350 meters/min
• mechanical folding
• Machine type: Electromechanical
• Installed power: 12 kVA
• Air pressure: 6 BAR
• Compressed air requirement: 200 N1/min
• Noise: less than 80 dbA
• ALLEN BRADLEY automation systems
• Lubrication: Central, automatic for key points
• Safety Protection: Sensors with mounted safety microswitches
• Automatic bobbin lifting system
