Tank bottom valve
Tank bottom valve
Product Features & Options

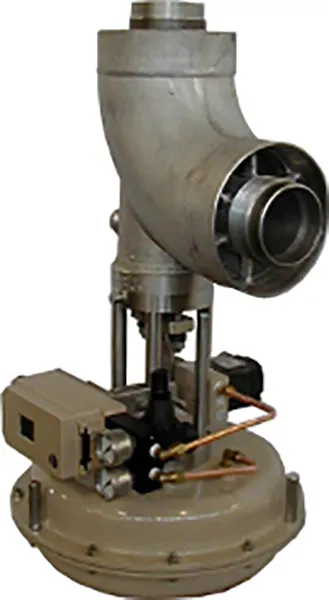

Tank Bottom Valve 607C
Our tank bottom valve:
For all liquids, powder, gas. Optional stem bellows for dangerous medium
DN 20 to DN 400
3/4" to 16"
PN 10 to 250 acc. to size
150 to 1500 Lbs acc. to DN
Functions – Tank bottom valve
♦ Tank or reactor bottom outlet valve
♦ Tank bottom control valve
Operating principle – Tank bottom valve
– Shutter: Disc or piston with vertical move
Rising disc or Disc lowering into body to open
– Process/Atmosphere sealing with stuffing bow (repackable in service)
– Body designed for futher flowing
AN_AGRAN_FDC
Zoom
Fabrication – Tank bottom valve
Construction materials : Carbon Steel (CS), Stainless Steel (SS), Duplex & Super Duplex, Inconel & Incoloy®, Titanium, Zirconium, Uranus® B6, Tantalum, Nickel, Hastelloy®, Monel
Construction Methods: Fabricated (Welded), Cast
Uses – Tank bottom valve
Service conditions: High pressure, High temperature, Low temperature, Abrasion, Corrosion, Vacuum
Types of fluids: Liquids, Liquids with solid particles, Gas, Powder and powdery media, High viscosity fluids
Applications: Fine chemicals, Plastics and polymers, General chemicals, Petrochemicals
