Globe valve
Globe valve
Product Features & Options

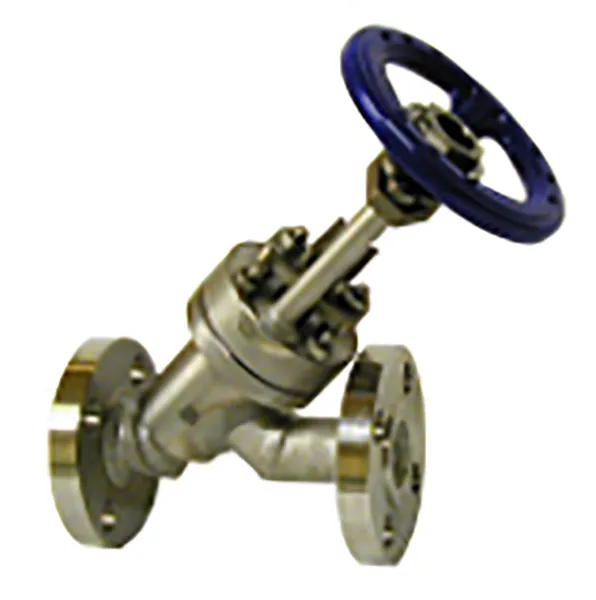

Globe valve 503
Our globe valve:
For all liquids, powders, gases. Optimized for high pressure. With optional bellows for dangerous mediums.
DN 5 to 400
3/16" to 16"
PN 10 to PN 420 acc. to size
150 to 2500 Lbs acc. to DN
Functions – Globe valve
♦ in-line on/off or control valve
♦ Control valve
Operating principle – Globe valve
– Shutter: fixed or floating disc
– Sealing: With stuffing box (repackable in service)
– Y-type body (low pressure drop)
AN_SOUPAPE_INCL
Zoom
Fabrication – Globe valve
Construction materials : Carbon Steel (CS), Stainless Steel (SS), Duplex & Super Duplex, Inconel & Incoloy®, Zirconium, Uranus® B6, Tantalum, Nickel, Hastelloy®, Monel
Construction Methods : Fabricated (Welded), Cast, Solid
Uses – Globe valve
Service conditions : High pressure, High temperature, Low temperature, Abrasion, Corrosion, Vacuum
Types of fluids : Liquids, Liquids with solid particles, Gas, Powder and powdery media, High viscosity fluids
Applications: Fine chemicals, Plastics and polymers, General chemicals, Petrochemicals, Nuclear and Naval / Submarine, Cryogenic service
