Piston valve
Piston valve
Product Features & Options

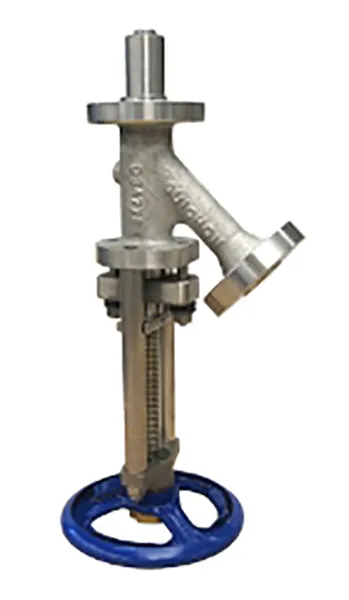

Piston valve 606M
Our piston valve
No dead space, particularly suitable for high viscosity and polymerising fluids
DN 15 to DN 250
1/2" to 10"
PN 10 to PN 420 acc. to size
150 to 2500 Lbs acc. to DN
Functions – Piston valve
♦ tank or reactor bottom outlet valve
♦ feeding valve : side mounted or upright
♦ Sampling or injection valve: at tank bottom or laterally / on a section of piping
♦ Walls cleaning by spraying or streaming : installed on reactor dome
♦ In-line stop valve, no dead areas
Operating principle – Piston valve
– Shutter: Right Piston and polished (stellite in option)
– Process/Atmosphere sealing with stuffing box (repackable in service)
– Full bore
– Low pressure drop
