ENIMAC SRL

Enimac- “Tape Application Made Easy “ Standard tape application machines

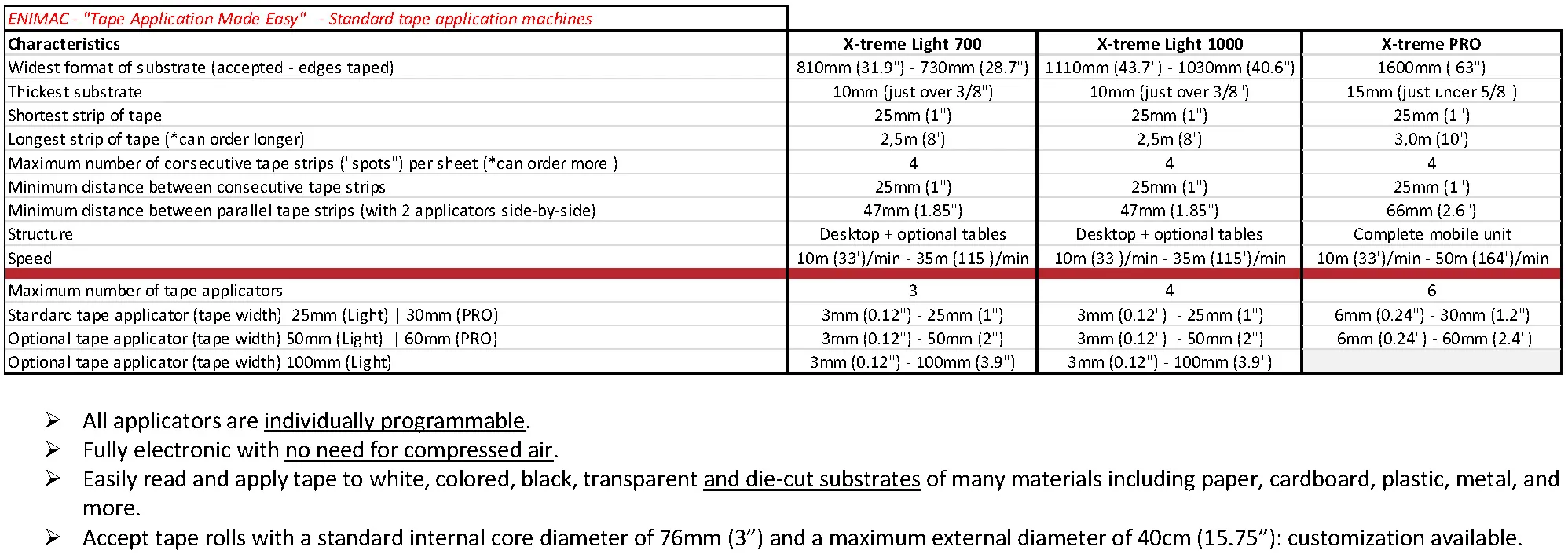

Characteristics

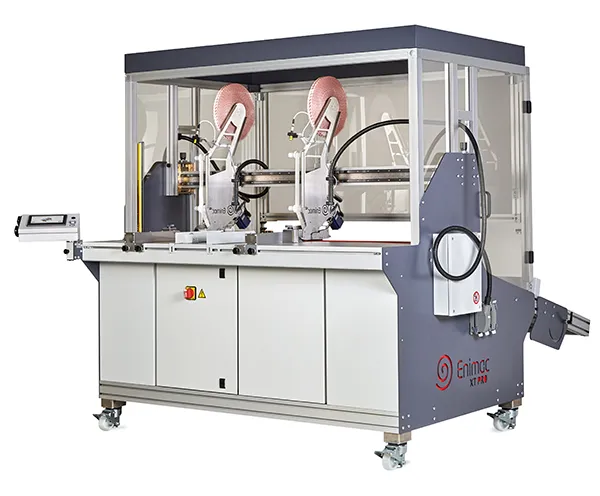

X-treme PRO

Widest format of Substrate (accepted – edges taped)

1600mm (63")

Thickness Substrate

15mm (Just under 3/8’)

Shortest Strip of tape

25mm (1”)

Longest Strip of tape (*Can order longer)

3,0m (10")

Maximum number of consecutive tape strips (“spots”) per sheet (*can order more)

4

Minimum distance between Consecutive tape strips

25mm (1")

Minimum distance between parallel tape strips (with 2 applicators side-by-side)

66mm (2.6”)

Structure

Complete mobile unit

Speed

10m (33’)/min -50m(164')/min

Maximum number of tape applicators

6

Standard tape applicators (tape width) 25mm (Light) | 30mm (Pro)

6mm(0.24”) -30mm (1.2”)

Optional tape applicators (tape width) 50mm (Light) | 60mm (Pro)

6mm(0.24”) -60mm (2.4”)

Optional tape applicators (tape width) 100mm (Light)
