Compact, practical and easy-to-use. Ideal for companies working in the graphic arts and printing sector, when the application of single and double-sided adhesive tape is required on flat surfaces with a maximum width of 700mm, including posters, flyers, envelopes, boxes, pendulums or wobblers, die-cut boxes or sheets with material up to 10mm thick, such as paper, cardboard, plastic material, metals and glass.
Enimac- “Tape Application Made Easy “ Standard tape application machines
Characteristics

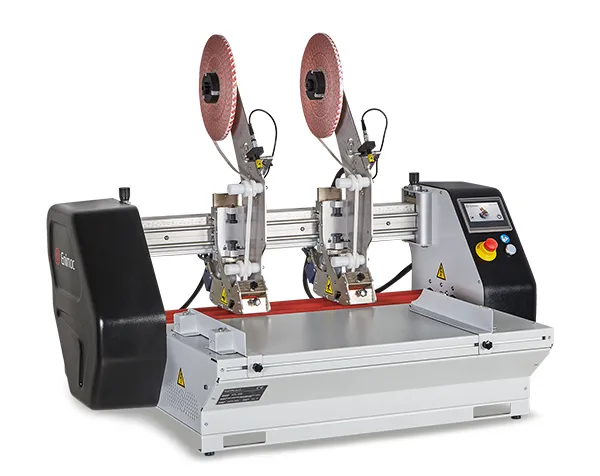

X-treme Light 700
Widest format of Substrate (accepted – edges taped)
810 (31.9”)-730mm (28.7”)
Thickness Substrate
10mm (Just over 3/8’)
Shortest Strip of tape
25mm (1”)
Longest Strip of tape (*Can order longer)
2,5m (8”)
Maximum number of consecutive tape strips (“spots”) per sheet (*can order more)
4
Minimum distance between Consecutive tape strips
25mm (1")
Minimum distance between parallel tape strips (with 2 applicators side-by-side)
47mm (1.85”)
Structure
Desktop + optional tables
Speed
10m (33’)/min -35m(115’)/min
Maximum number of tape applicators
3
Standard tape applicators (tape width) 25mm (Light) | 30mm (Pro)
3mm(0.12”) -25mm (1”)
Optional tape applicators (tape width) 50mm (Light) | 60mm (Pro)
Optional tape applicators (tape width) 100mm (Light)
3mm (0.12”) – 100mm (3.9”)
