ENIMAC SRL

Street Monzoro, 58 20007 Cornaredo (MI)

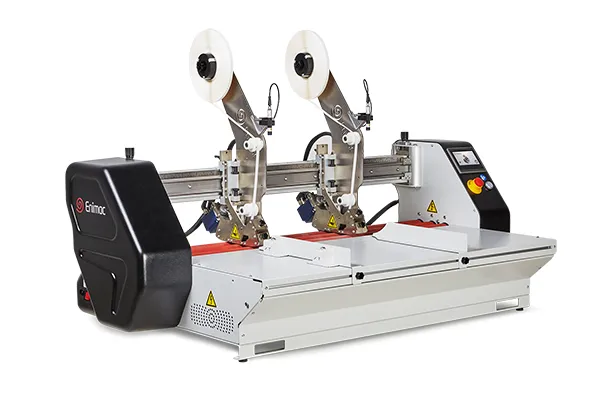

X-Treme Light 1000

Enimac- “Tape Application Made Easy “ Standard tape application machines
Characteristics	X-treme Light 1000
Widest format of Substrate (accepted – edges taped)	1110 (43.7”)-1030mm (40.6”)
Thickness Substrate	10mm (Just over 3/8’)
Shortest Strip of tape	25mm (1”)
Longest Strip of tape (*Can order longer)	2,5m (8”)
Maximum number of consecutive tape strips (“spots”) per sheet (*can order more)	4
Minimum distance between Consecutive tape strips	25mm (1")
Minimum distance between parallel tape strips (with 2 applicators side-by-side)	47mm (1.85”)
Structure	Desktop + optional tables
Speed	10m (33’)/min -35(115’)/min
Maximum number of tape applicators	4
Standard tape applicators (tape width) 25mm (Light) \| 30mm (Pro)	3mm(0.12”) -25mm (1”)
Optional tape applicators (tape width) 50mm (Light) \| 60mm (Pro)	3mm(0.12”) -25mm (1”)
Optional tape applicators (tape width) 100mm (Light)	3mm (0.12”) – 100mm (3.9”)

All applicators are individually programmable.
Fully electronic with no need for compressed air.
Easily read and apply tape to white, coloured, black, transparent and die-cut substrates of many materials including paper, cardboard, plastic, metal and more.
Accept tape rolls with a standard internal core diameter of 76mm (3”) and a maximum external diameter of 40cm (1.5.75”): Customization available.
