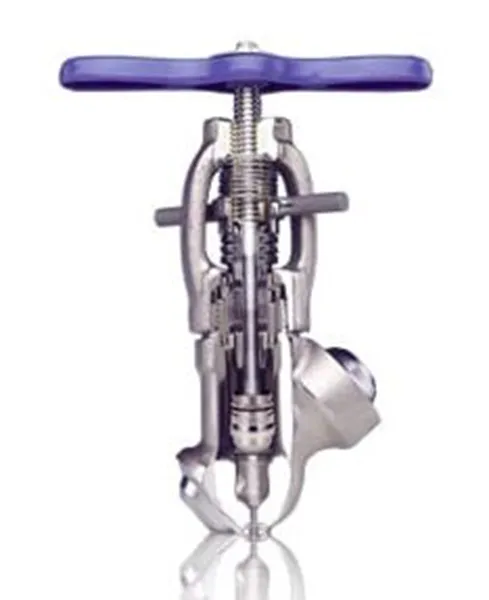

Globe Valve
CLAMPSEAL® Globe Valves are tailored to the exact requirements of our customers. No other severe service forged valve offers so many options. Conval provides three globe valve body styles, Y, Angle, and T-Pattern, in ASME pressure classes through 4500 and five standard materials. Other materials are available to meet customer needs. The easy interchangeability of parts means that an entire plant installation can be supported with a very low parts inventory.
Industry’s Lowest Life Cycle Costs
Multiple Body Styles
Low Emissions Valve Design
Wide Variety of End Connections
Standard sizes
Sizes through 4″
Pressure Rating
Nominal ASME Class 900/1500/2500/4500
Intermediate ASME Class 1195/2155/3045/4095
Standard, Limited, Special Classes
Standard Forging ASME Materials
SA 105, SA 182-F22, SA 182-F91, SA 182-F92, SA 182-F316
Other materials available upon request
Accessories
Actuators – electric, pneumatic, or hydraulic
Limitswitch – Single or double
Locking Devices – open, closed, or both
Position Indicator
Stem Shroud
DESIGN FEATURES
Globe Valve Body Styles
Y-Globe Stop, Check and Stop Check Valves
Y-pattern globe valves provide the maximum Cv possible in a globe valve. All Y-pattern valves are rodable. Available in 1/2″ to 4″; ASME pressure classes through 4500; SA105, F22, F91, F316, F347, Inconel™, Monel™ and other materials.
T-Pattern Stop, Check and Stop Check Valves
T-pattern, vertical stem globe valves provide easily accessible stems and extentions for remote manual operation. Available in 1/2″ to 3″; ASME pressure classes through 4095; A105, F22, F91, F316, F347, Inconel™, Monel™ and other materials.
Angle Stop, Check and Stop Check Valves
Angle pattern globe valves economically eliminate the need for separate valves and 90° joints. They also reduce the number of installation welds. Available in 1/2″ to 4″; ASME pressure classes through 4095; A105, F22, F91, F316, F347, Inconel™, Monel™ and other materials.
Valve packing system
The CLAMPSEAL® packing system incorporates corrosion-inhibited, high-density graphitic packing. Uniform loading from the axial one-piece gland and the highly polished stainless steel stem and stuffing box ensure a tight seal between packing material and sealing surfaces.
Rapid In-Line Repairability
The CLAMPSEAL® globe valve is much easier to repair than anything else on the market. The CLAMPSEAL® globe valve line provides a modular solution to rising maintenance expense. Low first cost is not as important as low cost over the serviceable life of a valve. Maintaining a Conval valve is far easier and much less costly than replacing a competitor’s valve.
Pressure Seal Bonnet
The simple and effective pressure seal bonnet provides ready access for servicing with no welds to cut or seal rings or gaskets to replace. The body-to-bonnet joint integrity is maintained through countless thermal cycles.
Single-piece Gland
In extreme environments, the simpler the design and the fewer the parts, the better. The durable single-piece stainless steel gland contributes to the longevity of the valve.
Axial-Loaded Packing System
The Axial design ensures tight concentricity, which eliminates side loading of the packing and minimizes wear forces on the trim components. This feature is critical for superior valve performance.
Pressure-Actuated Backseat
The CLAMPSEAL® pressure-actuated backseat provides maximum valve integrity by ensuring a positive internal stop for the valve stem and disc assembly. The pressure actuated backseat also extends packing life by securely isolating the packing from the pressure when the valve is fully open.
