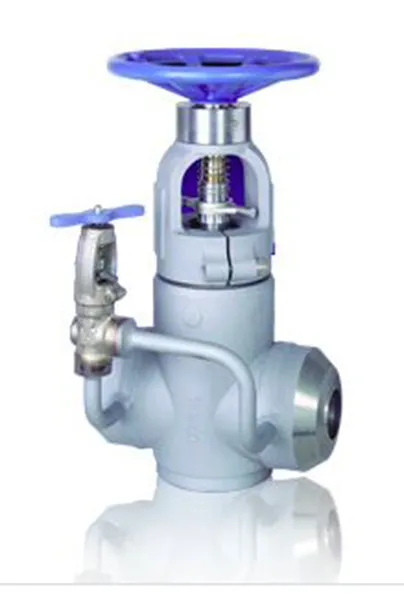

Gate Valve
Conval Swivldisc® Gate Valves are designed for the world’s most demanding high-pressure, high-temperature applications.
- Swivldisc® Wedge Gate
- Low Emissions Gate Valve Design
- Wide Variety of End Connections
Standard Sizes
Sizes through 4″
Pressure Rating
Nominal ASME Class 900/1500/2500 Intermediate ASME Class 1195/2155/3045/3500
Standard Casting ASME Materials
SA-216 Gr. WCB, SA-217 Gr. WC9, SA-217 Gr. C12A, SA-351 Gr. CF8M
Other materials available upon request
Accessories
Bypass Actuators – Air, electric, pneumatic, or hydraulic Limitswitch – Single or double Locking Devices – open, closed, or both Position Indicator Stem Shroud
GATE VALVE DESIGN FEATURES
Swivldisc® Wedge Gate Design
The Conval Swivldisc® wedge gate design employs a flexible disc which permits the seating surfaces to achieve perfect alignment, establishing a tight seal not possible with standard wedge gate valves.
Pressure Seal Bonnet
The simple and effective pressure seal bonnet provides ready access for servicing with no welds to cut or seal rings or gaskets to replace. The body-to-bonnet joint integrity is maintained through countless thermal cycles.
High-performance Packing System
The packing system delivers the best performance available. The one-piece gland with integral gland wrench is readily adjustable at any time. The fine finish of the stem and chamber combines with high-performance graphite packing to ensure long packing service life.
Single-piece Gland
In extreme environments, the simpler the design and the fewer the parts, the better. The durable single-piece stainless steel gland contributes to the longevity of the valve.
Axial-Loaded Packing System
The Axial design ensures tight concentricity, which eliminates side loading of the packing and minimizes wear forces on the trim components. This feature is critical for superior gate valve performance.
Pressure-Actuated Backseat
The Swivldisc® pressure-actuated backseat provides maximum valve integrity by ensuring a positive internal stop for the valve stem and disc assembly. The pressure actuated backseat also extends packing life by securely isolating the packing from the pressure when the valve is fully open.
Rapid In-Line Renewability
The Swivldisc® Gate Valve is much easier to renew than anything else on the market. The Swivldisc® Gate Valve line provides a modular solution to rising maintenance expenses. Low acquisition cost is not as important as low cost over the serviceable life of a valve. Maintaining a Conval valve is far easier and much less costly than replacing a competitor’s valve.
