Box 603 SE-661 29 S"FFLE Sweden

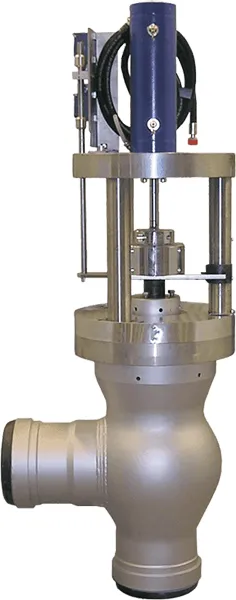

The IMI CCI VS Turbine Bypass Stop Valve is used in the harsh environment of modern fossil-fuelled power plants when a separate stop valve is used upstream of the HP and/or LP turbine bypass valves, or whenever a tight shut off valve is required. The VS valve is also used when a separate stop valve is required in the spray water line.
Another application for the VS valve is as an isolation valve in a process steam line.
The Kv/Cv-value of the valve depends on the pressure ratio between inlet and outlet and must – for each valve – be calculated by the computer program, where all throttling points in the valve are taken into consideration. A certified dimensional drawing will be supplied by IMI CCI.
The VS valve design is an angle style. The valve body, fully machined of forged CrMo low alloy or carbon steel, is designed to minimise material stresses as well as to fit the requirements of the piping system with regard to material, pressure class and piping connections.
Benefits of VS
Product Specifications
VS-T valve configuration
VS-BT valve configuration
