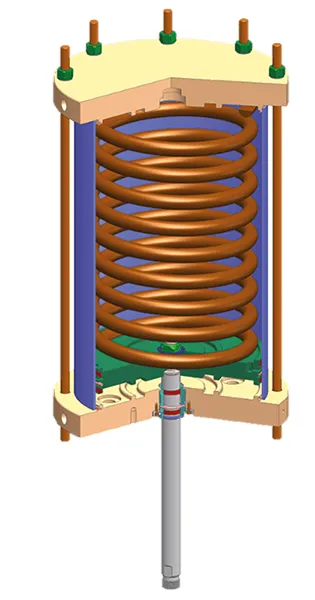

High Endurance Actuator

Direct replacement actuator for IMI CCI DRAG® valves, offering improved performance and reliability over existing equipment

• Low volume or spring return- double-acting design for optimum control.
• Forged aluminium end caps- for durability and light weight.
• Fiberglass/epoxy composite cylinder- for low weight and excellent endurance.
• Piston grease injection ports- automatically maintain constant lubrication of the piston seals, ensuring long life in demanding applications.
• 17-4 actuator shaft- for superior strength and improved wear and corrosion resistance.
• Removable actuator shaft seal gland- means fast, easy service of actuator shaft seals.
• Actuator shaft grease reservoir- automatically maintains constant lubrication of the actuator shaft O-rings, ensuring long life in demanding applications.
• Fluoropolymer actuator shaft and piston guide rings- for precise guiding and long shaft seal life.
• Actuator shaft wiper ring- protects actuator shaft seals from environmental debris.

Product Specifications

Applications

• Direct fit for IMI CCI DRAG© valves with pneumatic piston actuators

Type

• Double-acting pneumatic piston
• Available with spring-to-open, spring-to close or air tank for trip/fail

Thrust

• Up to 31,300 lb

Manual override

• Optional

Piston area

• 50, 113, 200 or 313 sq in

Stroke range

• Up to 24?

Max. operating pressure

• 150 psig

Temperature range

• Standard: -20°F to 185°F
• Low temperature: -40°F to 175°F

Available accessories

• Most positioners and pneumatic accessories

Positioner linkage

• Sliding cam motion converter for precise control and reliability

Paint

• High temperature black industrial paint (other options available)
