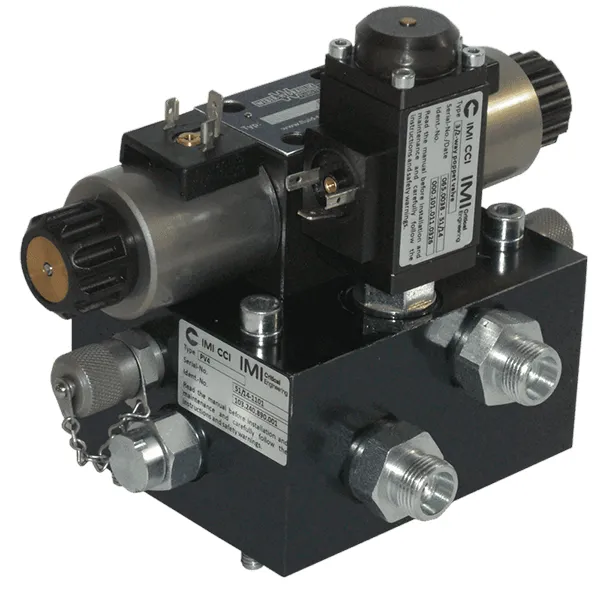

PV Modulating control device

This valve is used for fast and precise positioning of the hydraulic actuators of control valves. Along with the Proportional Valve Controller (PVR/SmarTrak) it converts the electrical signals into a flow of hydraulic fluid.

• Proportional valve to operate actuator.
• 3/2 blocking valve and two releasable check valves in case of failure.
• Four flow sizes available.
• Two minimess connections to do performance checks and to relieve pressure in case of service.
• Designed for mineral oil and/or fire resistant hydraulic fluids.

Benefits of PV

• Designed for rugged operation
• Mountable on the hydraulic actuator or open rack MSM.
• Stable positioning accuracy.

Product Specifications

Available system pressure

• From 50 up to 160 bar

Applicable hydraulic fluids

• Mineral oil DIN51524 (DIN ISO 6074)
• Fire resistant HFD-R fluids (e.g. Fyrquel® EHC)
• Fire resistant HFD-U fluids (e.g. Quintolubric® 888)

Max. fluid contamination

• ISO 4406 17/16/13
• NAS 1638 level 6
• SAE class 3

Manifold material

• Aluminium anodized

Sealing material

• FKM (Viton)

MTTFd - value

• 75 years

Ambient temperature

• -10 to 80 °C

Fluid temperature range

• 15 to 70 °C

#

• IP 65

Electrical connector

• DIN EN 175301-803 Form A

Blocking valve

• Voltage rating:24 V DC
• Voltage tolerance:± 20%
• Solenoid power:26 W
• Duty ratio:100%
• Life cycle:107

Proportional valve

• Voltage rating:24 V DC
• Voltage tolerance:± 10%
• Current range:PV4/6 0..1.1A,PV8/10 0..0.7A
• Duty ratio:100%
• Life cycle:107
