Knife Gate valves

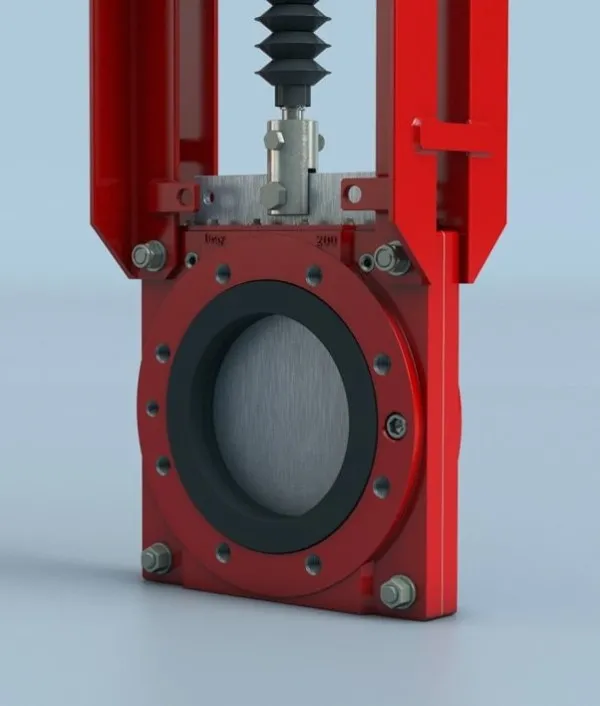

Bidirectional Knife Gate Valve - Series 768
Size Range: 2” to 24” / 50 mm to 600 mm
Body Materials: Ductile Iron, Check with factory for other available materials
Pressure Ratings: 316 SS Gate, 2” – 16” / 50 mm – 400 mm / 150 psi / 10 bar, 18” – 24” / 450 mm – 600 mm / 90 psi / 6.2 bar, (Higher pressures are available with select gate materials)
Stem Materials: 304 Stainless Steel
Body Style: Two Piece Bolted - Wafer
Gate Materials: 304, 316, 317, SAF 2507, SAF 2205,17-4PH, Hastelloy® C, Monel®
Seat Material Temperature Range: Natural Rubber: -60° to 165°F (-51° to 74°C)
EPDM: -65° to 248°F (-54° to 120°C)
Design Standard: Manufacturer Standard
Wiper Materials: EPDM
Testing Standard: Manufacturer Standard
Certifications: Canadian CRN, PED - Category I Module A (Group 2 Liquids)
Face to Face: MSS SP-81
Actuator Options: Handwheel (2 - 8"), Bevel Gear, Pneumatic, Hydraulic, Electric
Applications: Slurry
