Ball Valves

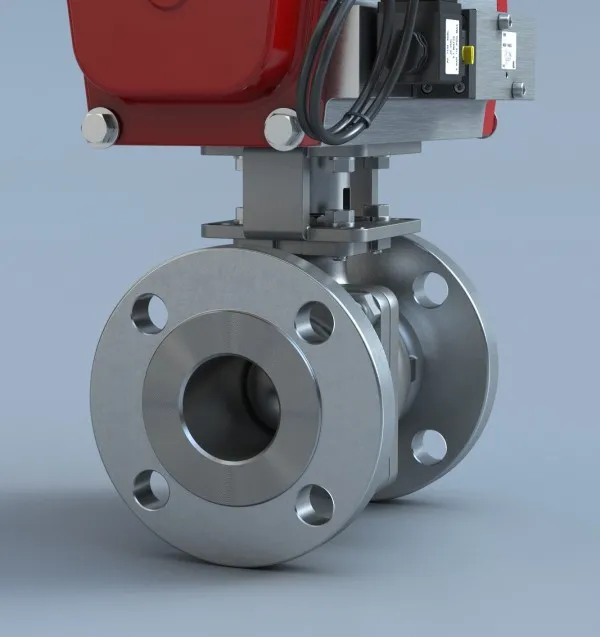

Flanged Ball Valve - Series F15/F30
Size Range: ½" - 12" (12mm - 300mm)
Body Materials: Stainless Steel (CF8M), Carbon Steel (WCB), Special Alloys
Temperature Range: -50°F to 650°F (-46°C to 343°C)
Stem Materials: ASTM A479 Type 316
Pressure Rating: F15: ASME Class 150,F30: ASME Class 300,PN10 - PN40
Seat Materials: Standard: TFM 1600, Optional: Tek-Fil®*, PEEK, RPTFE, UHMWPE,Metal, Cavity Filler
Shutoff Rating: Zero Leakage
Ball Materials: ASTM A351 Gr CF8M
Body Style: Two Piece
Design Standard: ASME B16.34, API 608
End Connections: ASME Class 150, ASME Class 300, PN10 - PN40, EN 1092-1
Testing Standards: API 598
Certifications: API 607, NACE MR0175, PED 2014/68/EU, ATEX 94/9/EC, GOST-R,
SIL IEC 61508 SC 3
Ports: Full Port
Face to Face: ASME B16.10
Applications: Process, Tank Farms, Fueling, Oil & Gas
Features & Benefits
The Flow-Tek F15/F30 Flanged Series ball valve, featuring a floating ball design for low torque and increased cycle life. As standard, larger sized valves feature trunnion-type ball support. These rugged ball valves are ideal for industrial applications.
½” – 2” valves feature Flow-Tek's Smart Stem. This stem is self-adjusting due to its Belleville washers allowing it to compensate for environmental changes and wear. 2 ½” – 12” valves utilize an independent packing gland which can be easily adjusted without removing mounting hardware or operator. The packing gland is contoured to uniformly distribute the load across the packing.
Flow-Tek’s seat design ensures bi-directional, bubble-tight sealing with low operating torque. All resilient seats feature relief slots or seat outer diameter clearance to relieve pressure past the upstream seat, and positive preloading to ensure low pressure/vacuum sealing.
