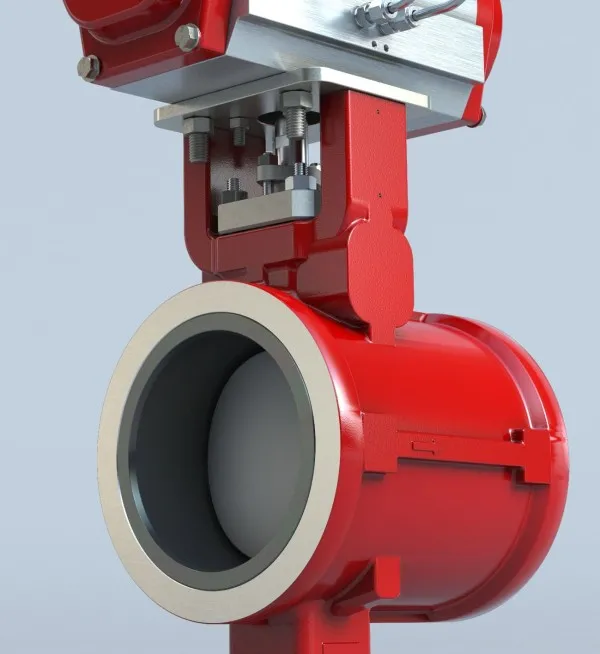

Ceramic Lined Butterfly Valve - Series 39
Size Range: - 20" (50 - 500mm)
Body Materials: Ductile Iron, Stainless Steel
Temperature Range: -20°F to 300°F (-29°C to 150°C)
Stem Materials: Stainless Steel
Pressure Ratings: 230 psi (16 Bar)
Liner Materials: Ceramic (Sintered Silicone Carbide) Metallic Carbide Rich, Chrome Iron Alloy
Shutoff Rating: N/A
Disc Materials: Chrome-Molly Iron (Hardened), PSZ Ceramic (Partially Stabilized Zirconia)
Body Style: Wafer & Flanged Long Body
Design Standard: ASME B16.34
Flange Drilling: ASME B16.5 Class 150
Testing Standard: API 598
Certifications: Ukraine TR
Face to Face: Manufacturer's Standard
Applications: Highly Abrasive, Slurry Control
