Secondary film Slitter Rewinder

Secondary film Slitter Rewinder

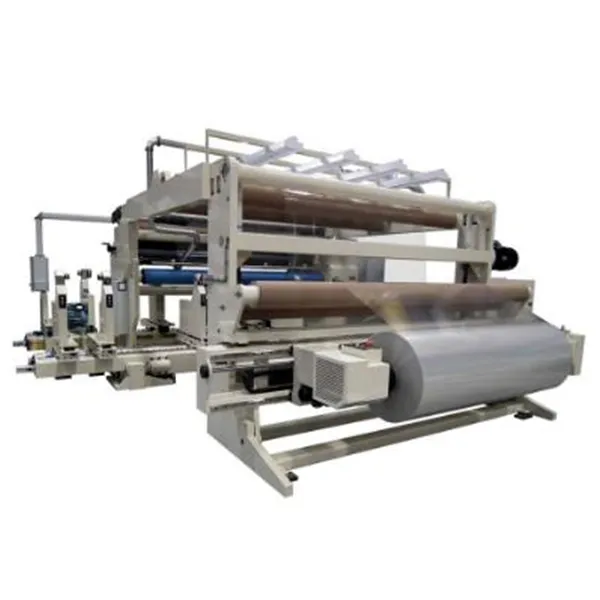

Jade Series Secondary Film Slitter Rewinder
Superior winding quality even at high speed

The design of the Jade series is to improve the winding quality of all films at high speeds, and to add greater flexibility on machine setup. Based on a new winding principle, the rewind stations are able to move independently on the same rewind beam, allowing our end user to wind with different core sizes on the same rewind beam. The rewind stations also move linearly away from the contact roller as the rewind diameter increase, which allows excellent finished roll profiles, both in tension and edge quality.
Tension isolation is through our vacuum roller. Our vacuum roller technology is proven to give superior tension isolation without scratching or marking the most delicate of films, and is totally maintenance free.
 The Jade series is a total electric operation, no hydraulics are used throughout the machine, making it a total clean operation.
FEATURES of SECONDARY FILM SLITTER REWINDER:
⦁    Maximum speed 1200m/min for optimum productivity
⦁     Perfect tension isolation eliminates creasing and wrinkling even on the most sensitive materials
⦁     All electrical operation makes it the hygienic choice
⦁     Easy to install and maintain
⦁     State of the art AC digital vector drives mounted locally to save space
⦁     Wind different diameters or core sizes on a single run on the same rewind beam
⦁     Minimise downtime using one common layon roller
⦁     Fully automated option
⦁     Optional automatic knife and arm positioning available
SPECIFICATIONS
⦁    Machine width 1.6m to 3.5m
⦁     Unwind diameter range 1000mm to 2000mm
⦁     Rewind core sizes from 76mm and upwards
⦁     Maximum rewind diameter up to 1200mm
⦁     Maximum machine speed 1200m/min
⦁     Minimum slit width 250mm
⦁     Various slitting configurations available
⦁     Able to handle a wide range of filmic substrates
