Duplex Slitter Rewinder

Duplex Slitter Rewinder

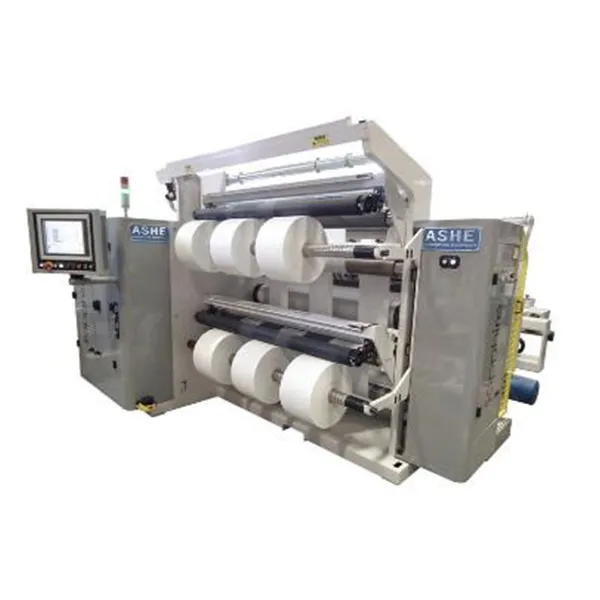

Sapphire S2 Duplex Slitter Rewinders
Easy to use for high speed, high finish results

The Sapphire S2 duplex slitter rewinder is the only choice for ease of operation, repeatability and minimal downtime. The machine is acclaimed for its versatility in being able to handle many different products, without any changes to the machine operation.
Our vacuum roller technology is a key feature of the machine, which requires no operator setting or maintenance throughout the life of the machine. The machine is also a total electric operation, no hydraulics are used in the machine.
The machine has a maximum running speed of up to 800m/min and can be equipped with many options for automation, which help in reducing setup times. It is also now available in three rewind diameter configurations, being 600mm, 800mm or 1000mm.
Superior engineering technology gives you outstanding results – get your quote today.
FEATURES OF DUPLEX SLITTER REWINDER
⦁    Maximum speed 800m/min for optimum productivity
⦁     Perfect tension isolation and superior winding avoids slips and scratches
⦁     All electrical operation makes it the hygienic choice
⦁     Ergonomic design for ease of use, including walkway for access to slitting section
⦁     Core alignment system for quick, easy set up and use
⦁     Intuitive touch screen with job memory storage
⦁     ASHE digital edge guider
⦁     3 motor drive system as standard
⦁     ASHE patented differential winding shafts or chucks
⦁     Guarding around unwind to meet CE standards
⦁     Optional extra’s including laser core alignment, digital knife positioning, automatic knife positioning, driven unwind, splice table, static eliminators and various options for offloading and moving the finished reels
⦁     Option for energy efficient trim winders available
SPECIFICATIONS
⦁    Machine width 1000mm to 2000mm
⦁     Maximum unwind diameter up to 2000mm
⦁     Maximum rewind diameter of 600mm, 800mm or 1000mm
⦁     Maximum machine speed 800m/min
⦁     Minimum slit width 25mm and upwards
⦁     Various slitting configurations available
⦁     Able to handle a wide range of Films, Laminates, Foils, Non-wovens and Paper
⦁     Full shaftless unwind with electric reel lift
