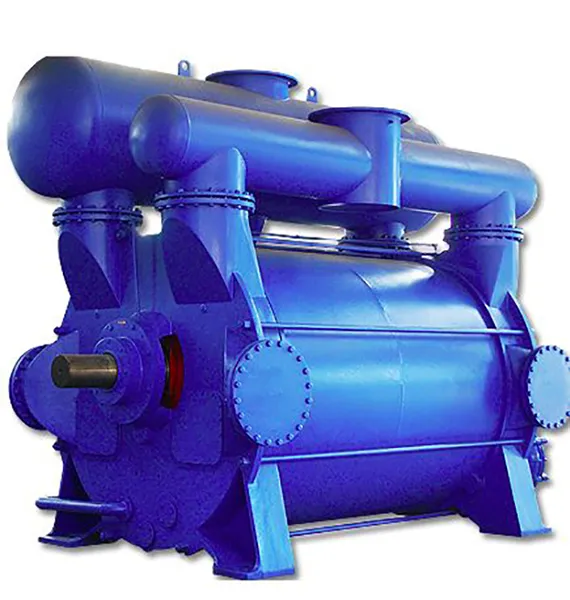

2BEC series water ring vacuum pump and compressor
2BEC series water ring vacuum pumps and compressors are high-efficiency and energy-saving products researched and developed by our company on the basis of years of scientific research achievements and production experience, combined with the advanced technology of similar products in the world. .Non-corrosive gas to create vacuum and pressure in closed container. By changing the structural material, it can also be used to pump corrosive gas or use corrosive liquid as working fluid. Widely used in papermaking, chemical, petrochemical, light industry, pharmaceutical, food, metallurgy, building materials, electrical appliances, coal washing, mineral processing, fertilizer and other industries.
This series of pumps adopts a single-stage single-acting structure, which has the advantages of simple structure, convenient maintenance, reliable operation, high efficiency and energy saving, and can adapt to harsh working conditions such as large displacement and load shock fluctuation.
We have systematically optimized key components such as distribution plates, impellers and pump shafts, simplifying the structure, improving performance and achieving energy savings. Welded impeller is adopted, the blade is punched and formed at one time, and the profile is reasonable; the wheel and shaft are all processed, which fundamentally solves the problem of dynamic balance. The impeller and the pump shaft adopt the shrink fit interference fit, which has reliable performance and stable operation. After the impeller is welded, a good heat treatment is carried out as a whole, and the blade has good toughness, which basically guarantees the impact resistance and bending resistance of the blade, and can adapt to the harsh working conditions of load shock fluctuation.
2BEC series pumps are equipped with air-water separators, suction and exhaust ports at multiple positions, and an inspection window for exhaust valves on the pump cover. The gap between the impeller and the distribution plate is adjusted by the glands at both ends of the positioning bearing, which is easy to install and use and easy to operate. , easy to maintain.
The vacuum pumps of our company have been strictly inspected and tested by the testing center, and the performance is superior, reliable and durable.
