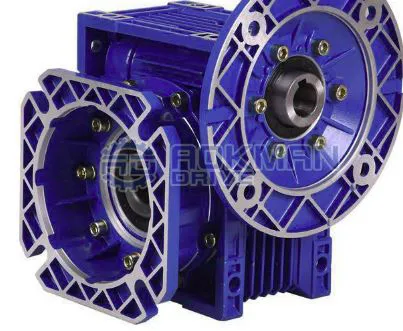

RV Series Worm Gearboxes
Components:
1. Housing: Die-cast Aluminum Alloy Gearbox (RV025~RV090)Cast Iron Gearbox (RV110~RV150)2. Worm Wheel: Wearable Tin (Stannum) Bronze Alloy, Aluminum Bronze Alloy3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding4. Input Configurations:Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)IEC B5/B14 Motor FlangeNEMA C Frame Motor FlangeSolid Shaft Input5. Output Configurations:Keyed Hollow Shaft OutputHollow Shaft with Output FlangePlug-in Solid Shaft Output6. Options: Worm Shaft Rear Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover7. Gearbox Painting:Aluminum Alloy Gearbox:After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light GreyCast Iron Gearbox:After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue
Models:
Hollow Shaft Input with IEC-normalized Motor FlangeRV025~RV150Solid Shaft InputRV025~RV150
Features:
1. Quality aluminum alloy gear box, light weight and not rust2. 2 optional worm wheel materials: Tin (Stannum) bronze or aluminum bronze alloy3. Standard parts and very flexible for shaft configurations and motor flange interface4. Several optional mounting options5. Low noise, High efficiency in heat dissipation
