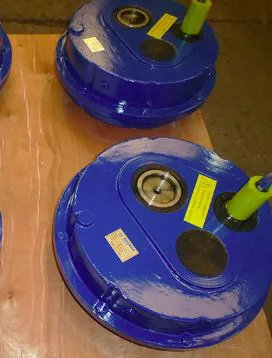

ATA Series Shaft Mounted Gearbox
Components:
1. Housing: Nodular Cast Iron(Ductile Iron) QT6002. Gears Profile: Hardened Helical Gears3. Gears Material: 20CrMnTi4. Gears Processing: Carburizing, Quenching, Grinding5. Gears Hardness: Surface Hardness: HRC58-62, Inner Hardness: HBS156-2076. Gears Accuracy: 6 Class7. Shafts Material: 40Cr8. Input Configurations:Keyed Solid Shaft InputIEC Normalized Motor Flange9. Output Configurations:Keyed Hollow Shaft Output10. Oil Seal: TAIWAN SOG11. Bearings: NSK, SKF, FAG, HRB, ZWZ, LYC12. Spare Parts: Torque arm, Optional Backstop
Models:
1 Stage: ATA30, ATA35, ATA40, ATA45, ATA50, ATA60, ATA70, ATA80, ATA100, ATA1252 Stage: ATA35D, ATA40D, ATA45D, ATA50D, ATA60D, ATA70D, ATA80D, ATA100D, ATA125D
Features:
1. Absolute reliability and low maintenance for the quarry and mine applications2. Sturdy ductile iron housing suitable for outdoor installation3. Up to three optional output shaft bore diameters4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)5. Optional backstop for all models(Excluded ATA30) to prevent backdriving in case of incline conveyors6. Dimensions are same with Bonfiglioli(TA Series)7. Double lips oil seal combines the functions of seal and dust-proof8. Widely used in belt conveyor and pulley drive system
