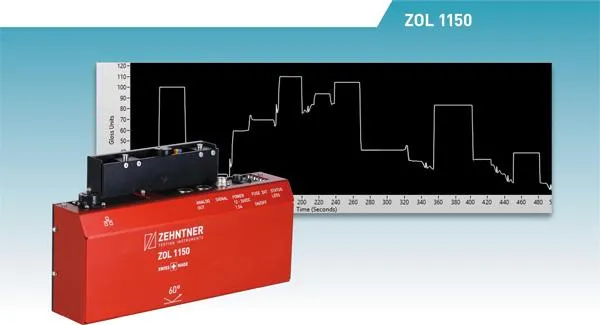

ZOL1150 Online Glossmeter

ZOL1150 Online Glossmeter
  • Tailored gloss-measuring system for industrial areas for contactless online measurement of all gloss ranges from matt to high gloss up to 2‘000 GU.
  • Pathbreaking with various types of digital communication and analog outputs
  • Unique automatic in-situ calibration simplifies the handling and minimizes holding times significantly
  • Powerful stray light compensation allows exact measurements of transparent objects
  • Featuring automatic measuring distance correction
  • Online monitoring of gloss and glosshaze during the production with up to 1‘000 measurements per second
  • Multi-angle measuring-heads
  • Reliable results.


Features (depending on version):


  • Designed on the individual customer requirements
  • Measurements on the lower and/or top side of the continuous material
  • Continuous recording of the gloss values for checking if the quality requirements are fulfilled at any time
  • Multi-angle measuring-heads
  • Up to 1‘000 readings per second
  • Measurements on the lower and/or top side of the continuous material
  • Digital communication: RS 232, RS 485 or Ethernet
  • Possibility to entirely control the unit over binary commands
  • Analog output of the measuring value
  • Integrated Z-Axis
  • Automatic in-situ calibration
  • Signal outputs for out of range measurements and changing reels
  • Signal input for calibration and moving measuring head
  • Multi-angle measuring-heads
  • Up to 1‘000 readings per second


Standard delivery


  • 1 Single, dual or triple angle measuring-head with calibration plate and analog output
  • 1 Instruction manual
  • 1 Certificate of manufacturer
  • 1 Certificate of calibration
    ?

Options


  • Data logging software
  • Manual cross beam
  • Automatic cross beam
