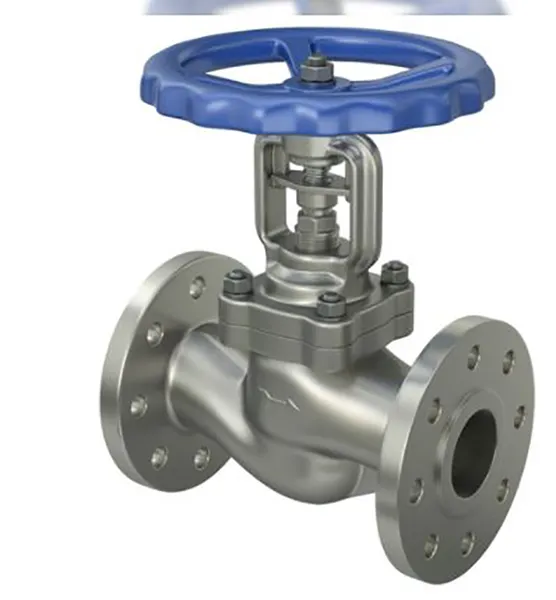

Globe Valves

We synthesize a wide range of Globe Valves which includes seal globe valves, gate globe valves and cast iron globe valves. These globe valves are made from the finest quality of metal and raw materials. We hold a state of the art infrastructure, where we have all the latest machineries and tools. All are team is specially trained. We have set our own quality control team. The designs are unique and efficient. Its been more than a decade that we are consistently serving our clients. With all this we are the paramount cast iron globe valves manufacturer and supplier from India.ZED Globe Valves are O.S. & Y Type i.e. Outside screw & yoke, Bolted bonnet, & Rising stem. Globe valves are used where throttling and both throttling and shut-off is required. They can also be used for on-off service, but because of high pressure drop, this is generally confined to applications where the valve is normally closed and drop is not important when the valve is open. Normally globe valves are installed with flow under the disc, but under certain conditions flow over the disc may have the advantages.ZED can also supply Angle Valves, Type Globe Valves and Globe Valves as S.D.NR (screw-down non-return) which in effect converts it into two valves, stop valve when closed or a check valve when open.Design Features :

Streamlined shaped body for smooth flow of the working fluid for minimum pressure Drop.

Back seating arrangement permits the replacement of packings while the valve is in full open position

Standards Applicable :

Design Standard : BS 1873

Testing Standard : API 598 / BS EN 12266 -1

Face to Face : ASME B 16.10

End Connection :
