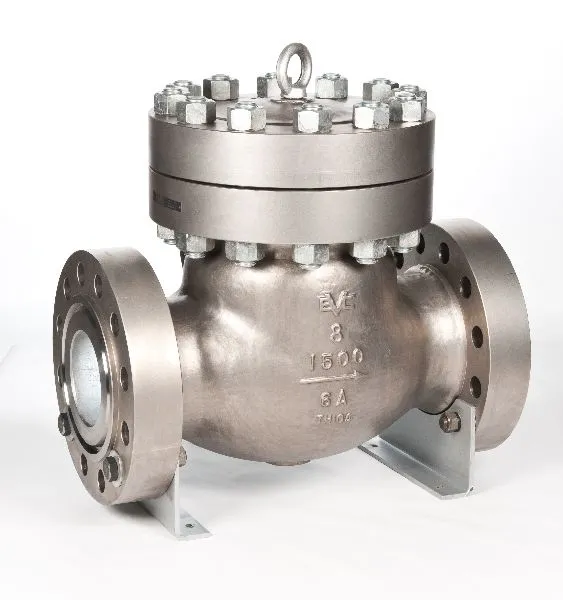

Check Valves
We fabricate a wide range of Check Valves which includes swing check valves, ball check valves and many more valves. These valves manufactured by us are made from the best of the metals. The designs of these valves are completely unique in comparison to other available in the market which directly increases its efficiency. These valves even work properly under tough and unyielding condition. These things make our products stand a way ahead of others available. We have a special quality analysis department which checks the quality. This has made us the most prominent wafer check valves manufacturer and suppliers in India.Swing Check Valves are having Bolted cover, Swing type disc. These valves are used to prevent flow reversal in piping systems. They are suitable for service in horizontal (flow up through valve only) piping runs. Swing Check Valves have low pressure drop and are best suited for moderate velocity applications. Correct sizing of swing check valves is important. Either too low a line velocity or too high a velocity can damage valve internals and shorten valve life.Swing Check Valves are suitable for all service media. Valves can also be supplied with counter weights and dash pot arrangement depending upon the condition and request.Standards Applicable :
esign Standard : BS 1868/API-6D
Testing Standard : API 598/BS EN 12266 -1
Face to Face : ASME B 16.10
End Connection :
Flanged End : ASME B 16.5
Butt Weld End : ASME B 16.25
Pressure Temperature : ASME B 16.34
Material Structure : End Connection Flanged end raised face, Butt weld end, RTJ, etc.Shell : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastalloy, Inconel, Duplex Stainless SteelTrim : 13% Cr. Steel, 304, 304L, 316, 316L, 321, 347, Monel, Duplex Stainless Steel
