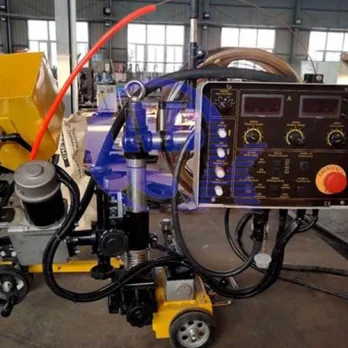

Submerged Arc Welding Tractor
CSAW-1000 The utility model can be used for the welding of the flat / corner joint and the cylinder of the tank, and can also be used for the longitudinal seam welding of the cylinder with a diameter larger than 800mm. The category of cars have multiple configurations to choose.
The main components:
1)The magnetic adsorption component equipped with fillet welding, suitable for welding seam of tank bottom and feet;
2) The 3+1 wheel design unique, stable and use of both;
3) The walking worm drive, and equipped with clutch, convenient non welding state handling;
4) The grooved wheel, which can be used alone without rail; and can adapt to the angle of self-made track;
5) The United States is equipped with Miller welding system;
6) The equipment of infrared laser sight, convenient alignment of weld;
7) The wire diameter of 2.4mm~4.8mm;
8) Butt and lap, broken wire and inside and outside the tank bottom welding seam feet.
LIST:
NAME:CSAW-1000 conner auto welding machine
MODLE: CSAW-1000
LIST:CSAW-1000 type automatic submerged arc welding machine for input 380V+10%/3PH/50Hz boxer, call, floor / feet seam welding construction, single machine comprises the following components:
|
NO
|
COMPOSITION
|
MANUFACTUER
|
QUA
|
REMARK
|
|
1
|
Automatic welding system
|
3+1 Wheel self walking car
|
WUXI ABK
|
1SET
|
CHINA
|
|
The torch position regulator
|
|
Torch angle trimmer
|
|
Flux hopper and lower material component
|
|
Infrared laser welding device
|
|
In / outside gap magnetic adsorption three piece
|
|
2
|
WELDING SYSTEM
|
DC1000 LINCOLN
|
USA
LINCOLN
|
1SET
|
Original
|
|
NA3 FEEDER
|
|
NA3 CONTROLLER
|
|
3
|
CABLE
|
WELDING CABLE(150mm2 x 60m x1)
|
|
1SET
|
|
|
CONTROL CABLE(2.5 mm2 x 10p x60m x 1)
|
|
ERATH(150mm2 x 5m x 1)
|
|
POWER CABLE(4mm2 x3p x60m x 1)
|
|
QUICK CONNECTOR
|
|
4
|
POWER RACK
|
CABINET
|
WUXI ABK
|
1SET
|
|
|
WELDING POWER FRAME
|
|
5
|
TOOLS
|
TOOLS
|
WUXI ABK
|
1SET
|
CHINA
|
