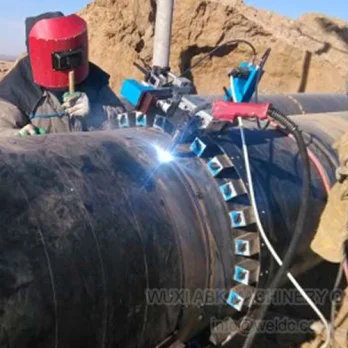

Horizontal Welding Machine

Overview of Tank Horizontal Welding Machine：

CO2 automatic welding trolley is widely used in ships, bridges, locomotives, steel structure, oil and chemical industry, suitable for various welding structure of welding, such as: stiffened plate, floor, cross site welding, box girder welding, and so on. Generally used for rule of the vertical butt welding, butt weld, through the adjustment of the welding torch position and angle can also be horizontal position welding and fillet welding.

KA-H10 is a welding equipment which is used to drive the gear rack and pinion, which is widely used in horizontal and vertical butt welding. It is especially suitable for medium and heavy plate welding and large pipe girth welding. By adjusting the welding torch position and angle, angle can also be welding, horizontal welding and overhead welding, arc welding. The trolley body, the swinging device and the control panel are separated, and can be welded on the track. It is convenient to install and remove the rail with a strong magnet on the workpiece.

Characteristics of Tank Horizontal Welding Machine：

1) KA-H10 can achieve vertical welding, horizontal welding, circumferential seam welding and welding and other welding.

2) with linear swing function. The swing mode, the swing amplitude, the swing speed, the center position and the left and right residence time can be adjusted.

3) with digital display car running speed.

4) in order to prevent the phenomenon of undercut and welding, the control function of the left and right swing stopping time is set up.

5) when the torch welding stop automatically revert to the weld center.

6) with automatic stopping function.

7) with current and voltage regulation function and point to move the wire function.

8) with a quick return stroke.

9) standard configuration to provide 1.8m long track. Miniaturization of light moving to facilitate mobile, but also to extend the use of docking.

Advantages of Tank Horizontal Welding Machine:

To reduce the labor intensity, improve the working environment.

To improve work efficiency, is 1.5 times of manual welding.

Avoid human factors caused by the weld quality is bad, generally non-performing rate of manual operation in about 20%, while the use of automatic welding trolley without resulting in the rate of bad welding.

So its comprehensive benefits, than manual welding to improve nearly 200%.

The high degree of automation, to ensure the stability of welding quality.

Don't need very skilled technical workers.

Parameter of Tank Horizontal Welding Machine:
