Whaley Products, Inc.

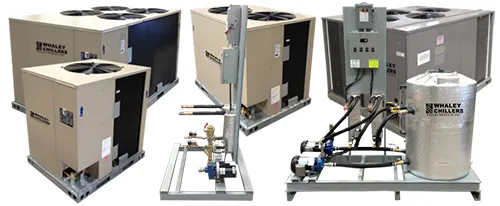

SAR-Series Air Cooled Split System Chillers

Standard Features

• High Efficient R-410A Refrigerant

• Copeland Scroll compressor(s)

• Insulated stainless steel copper-brazed plate evaporator(s) (others available)

• Cast iron end suction centrifugal supply pump rated at 2.4gpm per ton at 100’TDH (stainless available)

• Insulated polypropylene reservoir with fill port and liquid level sight glass (larger volumes available)

• Thermostatic expansion valve, filter drier, sight glass installed on refrigerant circuit(s)

• Service ports and valves

• NEMA 4 control panel with digital temperature controller

• High and low pressure safety

• Direct drive fan(s) made to run slower and more quiet

• Vertical air discharge fans minimizes operating sound

• Weather resistant fan motor made to survive in the elements.

• Highly efficient coil provides excellent heat transfer and low air resistance

• Energy Star qualified unit

• Indoor heat transfer skid assembled, plumbed, and wired on industrial epoxy-coated steel frame

• Refrigerant circuit(s) pressure tested for leaks with nitrogen charge

• Refrigerant circuit(s) vacuum tested for leaks to negative-psi pressure

• Refrigerant circuit(s) partially charged with refrigerant, to be topped off in the field

• Hydronic circulation loop leak tested under full flow using the WHALE-SOFT™ Testing Platform
