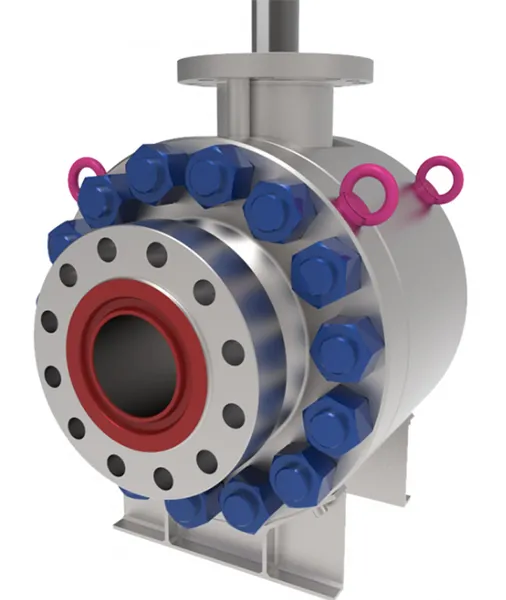

API 6A SIDE-ENTRY TRUNNION BALL VALVE
Velan ABV has been an API 6A licensee since 2001, implementing a quality management system in compliance with API Q1 and offers a complete range of valves that comply with the latest edition of API requirements. Velan ABV designs and manufactures API 6A Side-entry ball valves for Wellhead and Christmas tree equipment and for operating in aggressive environments with various fluids and gases such as a petroleum mixture of oil and sand and extreme sour gas service.Our forged valves are configured in two or three bolted pieces to ensure the highest level of reliability in varying combinations of high-temperature and high-pressure applications. Forged materials provide the rigidity and strength required in critical high-pressure operations to meet the customer's project specifications
SERIES
BT2 and BT3
VALVE DESIGN
based on API 6A and Customer requirements
TEMPERATURE RANGE
-150 to 428°F (-101 to 220°C)
SIZE
NPS 1.13/16 – 21.1/4 (DN 46-540)
PRESSURE RATING
API 5000 – API 20000
FACE-TO-FACE
As per API 6A standard
END CONNECTIONS
Hub connection6B, 6BX as per API6A
BODY DESIGN
Two or three bolted forged pieces
SEAT DESIGN
Soft or metal seated with Hardfacing on ball and seatsSelf relieving seatsDouble piston seats Combination seats
FEATURES
Double block and bleed design (DBB)Secondary seals in pure GraphiteAnti-static deviceAnti-blowout stemLip seal configurationEmergency sealant injection on seats and stem availableLow fugitive emission stem packing availableCRA overlay on all dynamic sealing areas or on all wetted parts available
OPERATOR
Manual: wrench or Gear with padlockingActuated: Pneumatic/ Hydraulic/Electric
TESTING & CERTIFICATIONS
Compliance with API 6A inspection and testing Fire safe and fire tested as per API 6FA/ 607SIL 3 Certification as per IEC61508Fugitive Emission as per ISO15848PED 2014/68/UE Different product specification levels available (PSL 1, 2, 3, 3G and 4)Different performance requirement levels available (PR1, PR2)Design validation as per PR2F (on request)
