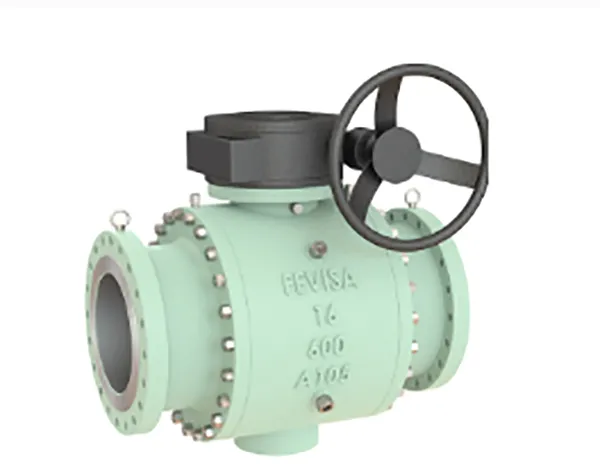

TRUNNION MOUNTED BALL VALVES
TRUNNION MOUNTED BALL VALVES
FEVISA Valves has very extended experience in manufacturing of TrunnionMounted Ball Valves
Size 2” to 60“(DN 50 to DN 1500)
Pressure Rating: ASME 150#, 300#, 600#, 900#, 1500#, 2500#
Materials: Forging and Casting Type – Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.
Seating: Soft Seated (PTFE/RPTFE /PEEK/NYLON/DEVLON) and Metal Seated
End Connection: Flanged FF/RF/RTJ, BW Ends
Operator / Actuator: Lever/Wrench, Gear, Actuator (Pneumatic, Hydraulic, Electric, Motorized, Electro-Hydraulic, Gas over Oil)
Specification:
Design – ASME B16.34/API 6D
Face to Face – ASME B16.10/API 6D
End Flange – ASME B16.5
BW End – ASME B16.25
Test – API598/API 6D
Fire Safe Test – API607/API6FA
Special – NACE MR-01-75
Features:
Bolted Body – Two Piece/Three Piece and Fully Welded
Bore Type – Reduced Bore and Full Bore
Anti- Static Device
Blow- Out Proof Stem
Fire Safe Design
Emergency Sealant Injector
Double Block and Bleed
