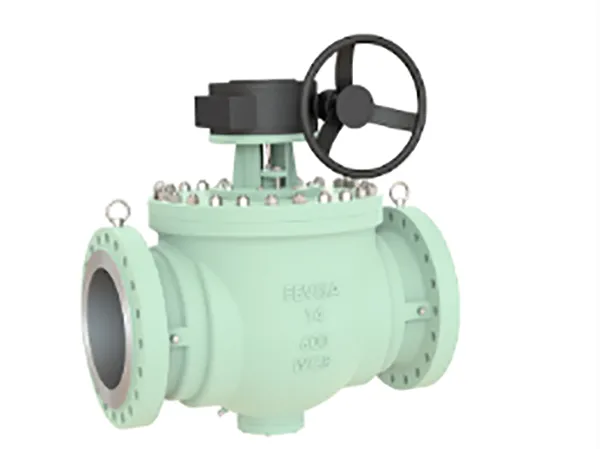

TOP ENTRY BALL VALVES
TOP ENTRY BALL VALVES
FEVISA Valves has very extended experience in manufacturing of Top Entry Ball Valves
Size 2” to 60“(DN 50 to DN 1200)
Pressure Rating: ASME 150# to 2500#
Materials: Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.
Seating: Soft Seated (PTFE/RPTFE /PEEK/NYLON/DEVLON) and Metal Seated
End Connection: Flanged FF/RF/RTJ, BW, SW and NPT (F/M) Ends
Operator / Actuator: Lever/Wrench, Gear, Actuator (Pneumatic, Hydraulic, Electric, Motorized, Electro-Hydraulic, Gas over Oil)
Specification:
Design – ASME B16.34/API 6D
Face to Face – ASME B16.10
End Flange – ASME B16.5
BW End – ASME B16.25
Test – API598
Fire Safe Test – API607/API6FA
Special – NACE MR-01-75
Features:
The Monolithic Cast Steel Body
Bore Type – Reduced Bore and Full Bore
Floating & Trunnion Mounted Ball Valves
Anti- Static Device
Blow- Out Proof Stem
Fire Safe Design
Emergency Sealant Injector
