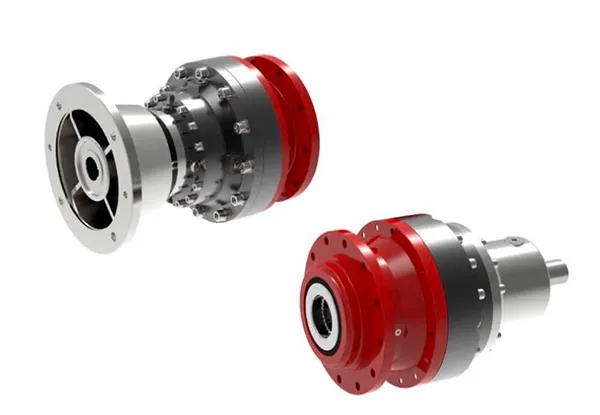

Planetary Gearbox

Planetary Gearbox

Planetary Gearbox Key Features

•  18 Frame Sizes
•  Gear Reducer Ratios
  •  1 Stage Gear Reducer 3.48:1~7.2:1
  •  2 stage Gear Reducer 12.1:1~51.8:1
  •  3 stage Gear Reducer 63:1~373:1
  •  4 stage Gear Reducer 403:1~2687:1
•  Gear Reducer Efficiency
  •  1 Stage Gear Reducer 97%
  •  2 stage Gear Reducer 95%
  •  3 stage Gear Reducer 92%
  •  4 stage Gear Reducer 90%
•  Gearbox Torque Range: 576~447360 Nm
•  Mechanical Rating Up To 380 Kw
•  Layout Of Axis: Right Angle And Parallel Shaft
•  Ideal For High Reduction Ratio, Inline Installation And Overhung Load
•  Wide Reduction Ratio, High Torque and Compact Size

Planetary Gearbox Benefits

•  Wide Reduction Ratios – Due to the design characteristics planetary gearboxes can achieve high efficiency and wide ratio in multiple stage combination.
•  Compact Design – Small Size but with high torque output due to the load sharing of the planet gears.
•  High Efficiency Output – Our planetary gears offer output efficiencies of up to 97%
•  Different Lubrication Options – Within the planetary gear series either oil or grease may be used to deliver lubrication throughout the system.
