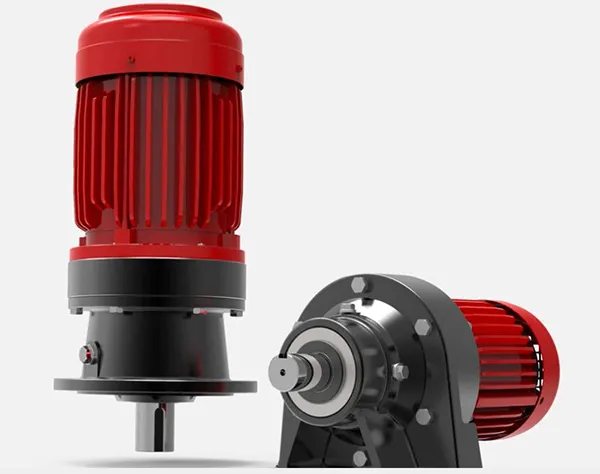

Cyclo 600 Series
Compact Durable Design
Our cyclo housings are made of gray cast iron FC25, above 620 are FCD 45. Power transmitting components are made from bearing grade steel SUJ2 that is hardened and ground.
Precision Cycloidal Drive Manufacturer
Transcyko Cycloidal Drives are built to very high quality standards. We can also service and upgrade the cyclo drives drives of other manufacturers. High quality and excellent construction enables very high torque to meet all customer requirements.
We pride ourselves on:
- Fail-safe reliability
- Brand servicing compatibility
- Very high speed reduction ratios
Fail-safe reliability
Transcyko Drives share stresses across more than 60% of parts, compared to 5% or less for conventional gears. Our cyclo drives stay in service, even if damaged, until the customer chooses a convenient time for maintenance. Transcyko Cyclo Drives are truly “fail-safe”.
Brand Servicing Compatibility
We offer the peace of mind and cost savings that come from having local parts availability for all major brands of cycloidal gear motor. Transcyko parts can be used to service and upgrade the drives of other manufacturers.
Precision Drive Manufacturer
- Redesigned teeth reduce noise and provide smoother operation
- Overload capacity up to 500%
- Cycloidal tooth profile provides a high contact ratio to withstand overload shocks
- Compact size: single ratio available from 6:1 to 119:1, double stage up to 7569:1 & triple stage up to almost 1 000 000:1
- Ideal for dynamic applications: frequent start-stop-reversing duties suits for cyclo speed reducer since inertia is low
- Reduced TCO: high reliability, long life, minimal maintenance compared to conventional gearboxes
- Internal parts replaceable with other brands to ensure 24-7 running
Transcyko Drive Features
- Grease Lubricated & Oil Lubricated Models Available
- Output Shaft Rotation Direction: Single Reduction: Clockwise Rotation; Double Reduction→ Counter Clockwise Rotation
- Ambient Conditions: Indoor Installation:10-40 Celsius, Max 85% Humidity, Under 1000m Altitude, Well Ventilated Environment, Free of corrosive, explosive gases, vapors and dust
- Slow Speed Shaft Direction: Horizontal, Vertical Up & Down, Universal Direction
- Mounting Style: Foot Mount, Flange Mount & Vertical F-flange Mount,
- Input Connection: Cyclo Integral Motor, Hollow Input Shaft Adapter, C-face Adapter, Top Mount, Shovel Bases
- Frame Size: 607-627
- Ratio: 6~658503
- Coupling Method With Driven Machine: Coupling, Gears,
Chain Sprocket Or Belt
- Teco Cyclo Motor Capacity Range: 0.2kW X 4p ~ 75kW X 4p;
15kW X 6p~132kW X 6p
Cycloidal Drive Break-Resistant Gearing
Low reduction ratio gearboxes use a normal involute tooth-gear. This is different from the design of the cycloidal gear which had a smooth curved gear by comparison. Traditional gear geometries are suitable primarily for lower reduction ratio applications. They are usually applied in Helical Gear and Bevel Gear designs.
Higher ratio gearboxes use cycloidal gear designs. These cycloidal gears are especially suited to heavy industry high torque stop/start applications.
Transcyko’s design uses a unique circular-arc tooth profile which prevents tooth breakage. This provides rolling contact points which avoid tooth damage or breakage. The cycloidal design therefore delivers high durability and long service life for mission critical applications.
