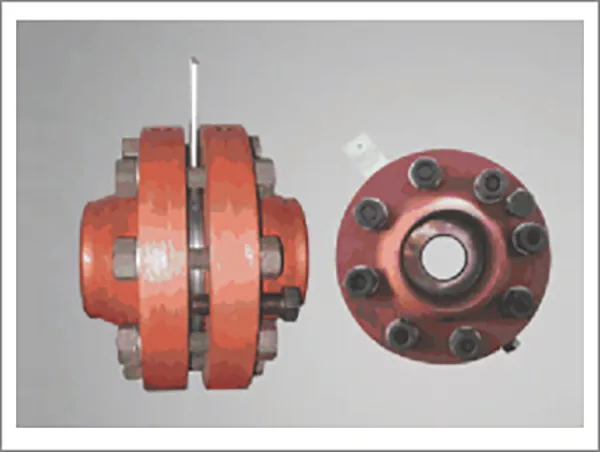

Orifice Assembly

Orifice Assembly

Integral Assembly with Meter Run

An orifice plate is a device used for measuring flow rate. Either a volumetric or mass flow rate may be determined, depending on the calculation associated with the orifice plate. It is based on Bernoulli's principle which states that there is a relationship between the pressure of the fluid and the velocity of the fluid. When the velocity increases, the pressure decreases and vice versa.
It is also used for reducing pressure or for restricting flow. It is often called a restriction plate.

Specifications:

• Orifice Plate Types : Square edge Concentric / Quadrant Edge / Eccentric
• Tapings : Flange / Corner / D X D/2
• Accuracy within +/- 1%
• Suitable for All Pipe Sizes from 1/2" to 36"
• For Integral Design : 15 NB to 40 NB
• For Flange Design : 15 NB to 400 NB
• Material of Construction : CS / SS 304 / SS 316 / PTFE/ PP / HAST C / MONEL
• Material of Construction : CS / SS 304 / SS 316 / PTFE/ PP / HAST C / MONEL
• Flange Material : A 105 / SS 316 / SS 304 / SS 316L/ CS
• Gasket : CAF / SS Spiral Wound / PTFE / Rubber Stud Bolts and Nuts : ASTM A 193 Gr B /
• ASTM A 194 Gr. 2H
