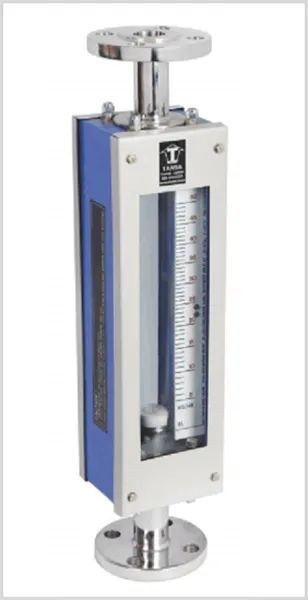

Glass Tube Rotameter

Glass Tube Rotameter

Glass Tube Rotameter is a Variable Area Flow Meter. A rotameter consists of a tapered tube, typically made of glass, with a 'float' made of SS or PTFE. The differentila pressure across the annulus area is constant. The float moves through the tapered tube up and down with respect to fluid flow. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate.

Specifications :

 Material of Construction : CS / SS 304 / 316 / PTFE
 Float : SS 316 / SS 304 / PTFE
 Tube : Glass Borosilicate
 Packing : PTFE / VITON / Silicon / Neoprene
 Enclosure : SS Buffed / MS Powder Coated / FRP
 Line Size from 15 NB to 80NB
 Ranges between 2.0 LPH to 2SQ00LPH
 ace-To-Face Distance : 500mm
 Accuracy : +/- 2% of Full Scale
 Measuring Span : 1:10
 Scale : Acrylic / Aluminum / SS

Various Features:

 Heavy Duty Design with Maximum Visibility
 Two Tone Powder Coated Excellent Finish
 No Threads in Body, Avoids Corrosion
 Easy to Maintain and Replace
 Suitable for on Line Installation
 Single Piece (Joint-less) PTFE/ PFA/ PP cladded end connections
