ALL IN ONE - FOR THE FIRST TIME ON THE MARKET!

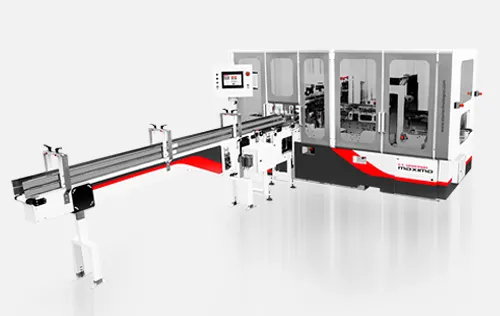

This machine is capable of doing banding in foil and papers as well as for four sides foil wrapping of towels or napkin stack. MAXIMA can do bending and four sides wrapping, reaching the speed more than 100 pack/min.
Folded tissue wrapper MAXIMA is extremely easy to use, fully servo driven with a lot of great features like continuous product feeding as well as continuous foil/paper feeding, spiral rotary knife, spring loaded infeed pushers, special accessory for using PE foil and many more.
CHARACTERISTICS
Infeed
servo motorized with spring-loaded metal pushers
Infeed length
3 meters
Mechanical speed
120 packs/min
Production speed
up to 110 packs/min
Pack width (B)
110 - 250 mm (4.3" - 9.8")
Pack height (H)
20 - 120 mm (0.8" - 4.7") option 1 up to 160mm/option 2 down to 10mm
Pack length (A)
80 - 120 mm (3.2" - 4.7")
Average size change over time
10 min
Machine height at infeed
900 mm (35.4") (optional 1000 mm (39.4"))
Machine approx. weight
3700 kg
Wrapping material
PE, PP, OPP 25 - 35 micron, heat sealable
Installed power
18 kW
Real power consumption
< 9 kW
Air consumption
< 50 l/min
Working air pressure
6 bar
