Konjevici BB, 32000, Cacak (Serbia) , Serbia

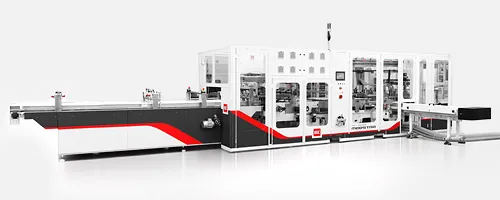

MAESTRA represents a fully automatic packaging system for rolls (for toilet paper rolls and for kitchen towels rolls packaging) into pre-made bags.
However, this system can be very easily adapted for packaging of all other hygiene paper products (facial tissue, paper and sanitary towels or diapers).The innovations that we have applied to this product make it the most competitive roll bag filler on market. Some of the main features include packaging of horizontally and vertically oriented products in paper or foil bags with speed of up to 120 bags/min as well as continuous rolls in-feed, with lane diverter which can synchronize the in-feed and divide the products into two, three, four and five lanes.
CHARACTERISTICS
Mechanical speed paper/foil
120 packs/min
Production speed
100+ packs/min, depending on the pack configuration
Infeed lanes
4 lanes
Layers
1 or 2 layers
Rolls diameter
90 - 160 mm
Cut-off (vertical configuration)
90 - 110 mm
Cut-off (horizontal configuration)
90 - 600 mm
Pack width
Single lane 180 - 650 mm / Dual lane 180 - 300 mm
Pack height
90 - 260 mm
Pack length
180 - 720 mm
Average format change-over time
0 - 10 min
Wrapping material
Pre-made bags
Installed power
38 kW
Real power consumption
25 kW
Compressed air consumption
< 50 l/min
Working pressure
6 bars
