Masterscreen

Masterscreen

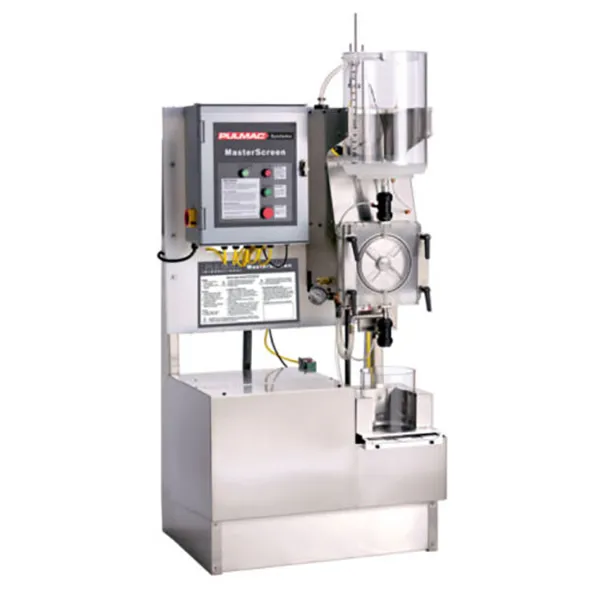

The MasterScreen™ is a low consistency screening device designed to mechanically separate fibers from contaminants, including stickies, dirt, shives, vessel cell elements, plastics and hot melts. Contaminants are deposited automatically onto a filter paper for display and analysis.

Benefits

The MasterScreen™ provides a rapid and repeatable test method for the collection of both shives and/or stickies. For shives, it allows for the pinpointing of problems that occur in areas such as digesters, cleaners, refiners, grinders and screens. For stickies, it allows for the pinpointing of problems that occur in repulpers, cleaners and screening. This data will support reducing the frequency of dirt, shives and/or stickies in the final product, leading to increased profitability.

Bottom-line: Increased profitability through troubleshooting, optimization and monitoring.

Features

  • Pressurized screening chamber adjustable to 15 psi (XLQ only)
  • Screens up to 100 g (oven dried equivalent)
  • Results between 10 – 15 minutes
  • Laser cut screen plates available in two standard sizes
  • (.004” and .006”) and custom between .003” – .014”
  • AutoFilter for quick deposit of contaminant
  • AutoFilter cartridge is easily repaired with a removable screen
  • Lid on feed tank localizes water spray
  • Large feed tank to accept samples up to 100 g, oven
    dried equivalent
  • Feed tank air mix to ensure delivery of uniform consistency
  • XLQ valve (Optional) between screening chamber and feed tank
  • Multi program feature including SA, MS, XLQ
  • Adjustable feed tank level control.
