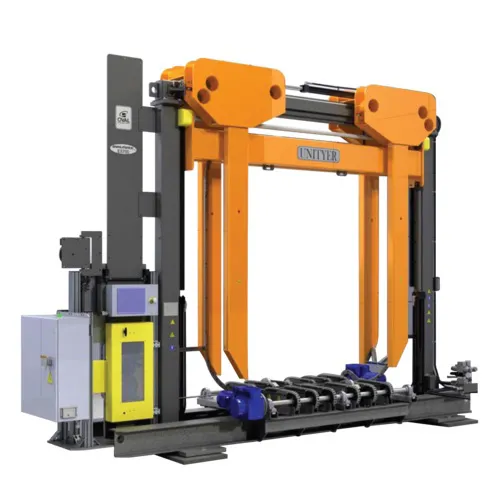

The model E700 Unityer comprises a removable all-electric Tying Unit and a hydraulically operated stationary Compacting Station. All tying functions are AC gear motor driven using AC Vector Drive technology. The E9700 Tying Unit includes automatic waste wire coiling for disposal, a high capacity accumulator and automatic threading after a coil change. The Compacting Station provides side and top compacting functions powered by a small on-board HPU.
Features and Benefits
ALL ELECTRIC WIRE TYINGReduces potential problems and the environmental concerns of hydraulics.
ROTATING DISC ACCUMULATORHigh speed, accurate management of wire- virtually eliminates knots and jams.
AUTOMATIC WIRE THREADINGSimply inserting wire into the outer guide starts and completes the feeding sequence.
AC VECTOR MOTOR
- Drives cams in twister head
- Low cycle time
LOW FRICTION TRACKThe proven low friction passive track design requires no lubricants
ON BOARD PLC
- Touch panel operator interface built in diagnostics
- Safe 24 Volt DC controls
EASY ACCESSDoors and panels allow easy accessibility for inspection and maintenance.
SEPARATING MACHINESTying machine is easily separated from Compacting Station for easy access and maintenance allowing standby machine to be used.
ROTATING DISC ACCUMULATOR
- Provides complete control of wire feed and tensioning and accumulated wire
- Reduces twists, buckles and jams
Standard Specifications
TYING WIRE RECOMMENDED
Ovalmatic® Quality Unitizing Wire
ELECTRICAL SERVICE
Unityer Tying Machine. 208-575 VAC, 3PH, 5KVACompacting Station. 208-575 VAC, 3PH, 50/60 HzExcluding conveyor and hydraulic unit power requirements.
ELECTRICAL MOTORS
Feed/Tension. 3.7 kW (5 HP) AC SEW gear motorAccumulator. 0.75 kW (1 HP) AC SEW gear motorTwister Head. 1.5 kW (2 HP) AC SEW gear motorTying machine motors are controlled by KEB closed loop vector drives.Conveyor Drive. (2) 1.5 kW (2 HP) 208-575 VAC 3PH, 50/60Hz reversible SEW gear motorHydraulic Unit. 7.5 kW (10 HP) SEW pump motor, 0.4 kW (0.5 HP) heat exchanger motor; 1.5 kW tank heater.All motors are supplied with equipment. Variable frequency conveyor drives, hydraulic unit motor starters and tank heater contractor are customer supplied.
ELECTIRCAL INTERLOCKS
Siemens Profibus.Optional. Allen Bradley Ethernet IP ControlNet or Discrete 1/0 120VAC or 24VDC
ELECTRICAL CONTROL
Siemens series PLCControl Voltage. 24 VDCTying machine motors are controlled by KEB closed loop motion control drives.Optional. Allen Bradley Control Logix PLC with PanelView Plus Touchscreen
ELECTRICAL COMPONENTS
All components meet CE/UL/CUL standards.
ELECTRICAL WIRING
Proximity Switches with Connectors. 0.21-0.33mm2 (24-22 AWG) stranded cable Standard. 0.52mm²-1.31mm² (20-16 AWG) stranded cablePrimary. 5.26mm²(10 AWG) stranded cable
PNEUMATICS
Required for auto air blast, electrical enclosure cooling5.5-6.9 Bar, 1,130 L/min. (80-100PSIG, 40 SCFM) Minimum Filtration Requirements. Particulate filtration to 5 Microns with moisture removal and oil removal to 1PPM. Instrument air is strongly recommended.
MACHINE WEIGHT
Tying Station. Standard Tying Machine. 1,180 kg (2,600 lbs.)Compacting Station. 10,890 kg (24,000 lbs.) including hydraulic unit
MACHINE HEIGHT
3,849 mm (151 in.) at 585 mm (23 in.) minimum height (the overall height is determined by unit size and conveyor height)
MACHINE WIDTH
6,180 mm (243 in.) with tying unit engaged
HYDRAULICS
Self contained hydraulic power unit using Parker directional valves and Parker axial piston pump.
COOLING.
Air/Oil
CONVEYOR GAP.
1,372 mm (54 in.)
OVAL International® specifications are subject to change without notice.
OVALMATIC® COMPONENTS
The core of the Unityer is built on five Ovalmatic® components:
- Feed and Tension Assembly
- Twister Assembly
- Track Assembly
- Frame Assembly
- Control Assembly
Each of these assemblies is designed to provide maximum accessibility for inspection and maintenance function.
ALL ELECTRIC DESIGN
All tying functions are electrically driven using AC vector drives technology
- Automatic wire threading
- Feeding
- Tensioning
- Accumulation
- Gripping
- Twisting
- Cutting
- Automatic Wire Cleaning
