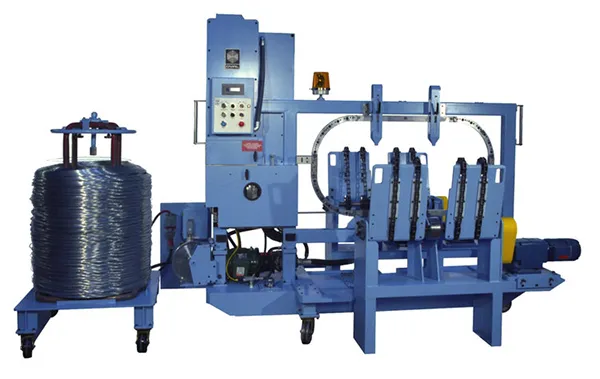

OVALMATIC MODEL 9500 WIRE TYING MACHINE
OVALMATIC MODEL 9500 WIRE TYING MACHINE
The model 9500 Tying Machine is hydraulically operated with the hydraulic reservoir, pump, motor and directional valves all on-board. The 9500 is based on the venerable 9000 product line first introduced in the middle 1960’s and shares many common parts.
Features and Benefits
HYDRAULICS
Ensures optimum oil temperature stability without the use of external cooling systems
Utilizes a manifold design that requires fewer connections further reducing the probability of leaks
Provides precision electronic wire tension detection in all operating conditions (the oil temperature has no effect on wire tension)
Environmentally conscious “uni-structure” design: no cooling water, no cooling radiator
FEED AND TENSION UNIT
OVAL’s own unique, patented design
Large feed and tension wheels ensure no wire distortion
Light nipping during feeding
A 90 degree wrap around tension roll provides grip for non-slip tension
Final tension electronically detected by stall of feed and tension roll
Standard Specifications
TYING WIRE RECOMMENDED
Ovalmatic® Quality Tying Wire-Sized to meet customer requirements.
ELECTRICAL SERVICE
208-575 VAC, 3PH, 50/60 Hz
ELECTRICAL MOTORS
Conveyor Drive. Two SEW 1.1kW (1.5 HP) 208-575 VAC 3PH, 50/60Hz, reversible brake motors Hydraulic Pump. 4kW (5.0 HP) 184TC, 208-575 VAC, 3PH, 50/60Hz motorAll motors are supplied with equipment. Conveyor motor controls by customer.
ELECTRICAL INTERLOCKS
Discrete I/OOptional. Interlocks are available.
ELECTRICAL CONTROL
Allen Bradley Programmable ControllerControl Voltage. 24 VDC Optional controllers available.
ELECTRICAL COMPONENTS
All components meet CE/UL/CSA standards
ELECTRICAL WIRING
Proximity Switches. 0.82mm2 (18 AWG) stranded cable Standard. 1.31 mm2 (16 AWG) stranded cablePrimary. 3.31 mm2 (12 AWG) stranded cable
PNEUMATICS
Required for auto air blast5.5-6.9 Bar, 28 L/min (80-100 PSIG, 1 CFM)
MACHINE WEIGHT
964 kg (2,125lbs.)With Hydraulic Fluid. 1,180 kg (2,600 lbs.)
MACHINE HEIGHT
1955 mm (77in.) at 533 mm (21in.) minimum line heightOptional machine track sizes are available.
MACHINE WIDTH
2,842 mm (112in.) excluding coil carrier
MACHINE LENGTH
1,372 mm (54in.) conveyor gap
CONVEYOR
Chain Conveyor- powered forward/reverse, 27 MPM (90FPM)Optional. Belt conveyor.
CONVEYOR WEIGHT
635 kg (1,400lbs.) per pair.
CONVEYOR HEIGHT
533 mm (21 in.) minimum
HYDRAULICS
Integrated hydraulic power unit using Parker discretional valves and axial piston pumps.
WIRE TYING MACHINE TECHNOLOGY
Environmentally conscious “uni-structure” design: no cooling water, no cooling radiator
Easy machine roll in, roll out by single operator
Easily accessible for service and maintenance
Integrated on board hydraulic system- no auxiliary cooling required
Self-monitoring control system
Adjustable locking wire guides
Optional Touch screen controls
Specially designed floating paper
Uniquely designed feed and tension unit
Prove Low Friction Passive Track design requires no lubricants
Simple, single stroke direct acting twister head
Accumulator has no moving parts
