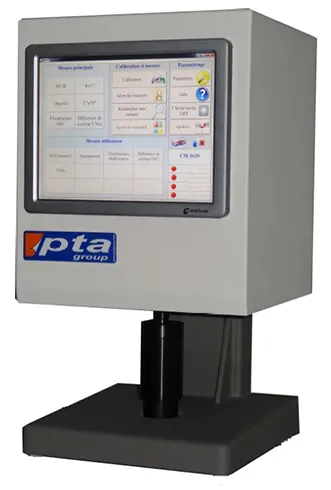

Spectrophotometer

Spectrophotometer

Specifications

  • Double beam spectrophotomètre with D/O° geometry

  • Measuring with three light sources (D65, C and UVex.) without re-calibration.

  • Equipped with NOVICOLOR software. Really useful software. QC application for paper and packaging industries. Possibility to save data and to create standard library and sample library

  • Measurements: Color, Color difference, Absolute and Delta values, ?E for CIE XYZ,

  • xyz, L*, a*, b*, C*,h*, u* v*, CIE, Opacity, Fluorescence, etc…

  • Illumination/viewing system: Reflectance: 0° (diffuse illumination, 0° viewing)

  • Light-Receiving element: Silicone photodiode array (dual 40 elements)

  • Spectral separation device: Diffraction grating

  • Wavelength range: 360 740 nm

  • Wavelength pitch: 10 nm

  • Reflectance range: 0 200%, resolution: 0.01%

  • Light source: 3 x pulsed xenon lamps

  • Measurement time: 1.5 seconds for measurements of fluorescent colors, 9600 bps

  • Measurement area: Ø 30 mm

  • Illumination area: Ø 34 mm

  • Software: NoviColor

  • CE mark.
